Product Parameters:

FOR TRANSPORTING BULK CEMENT, COAL ASH, OR OTHER PODER

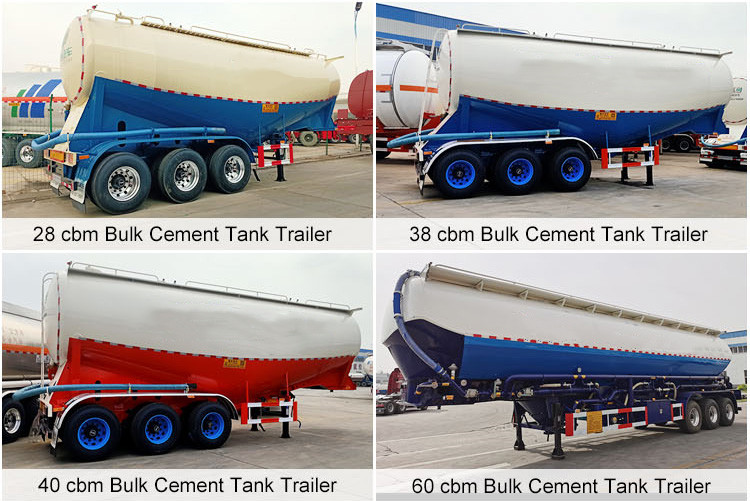

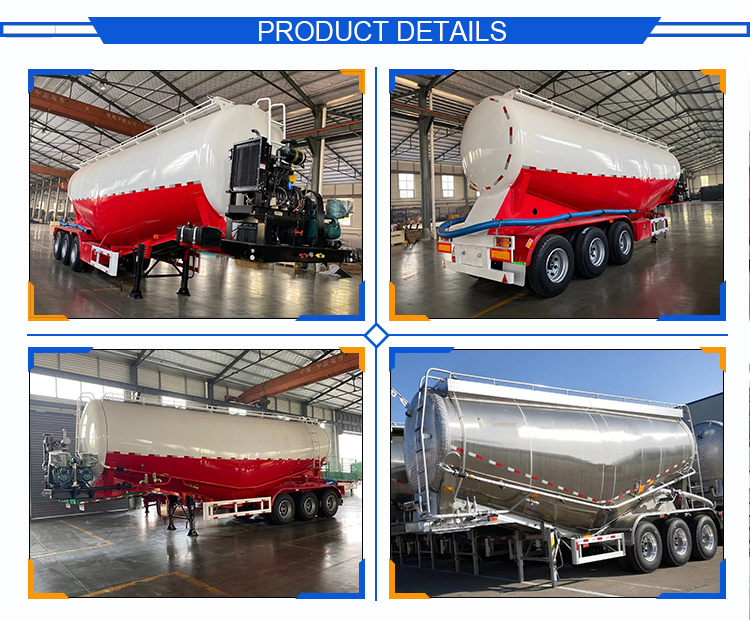

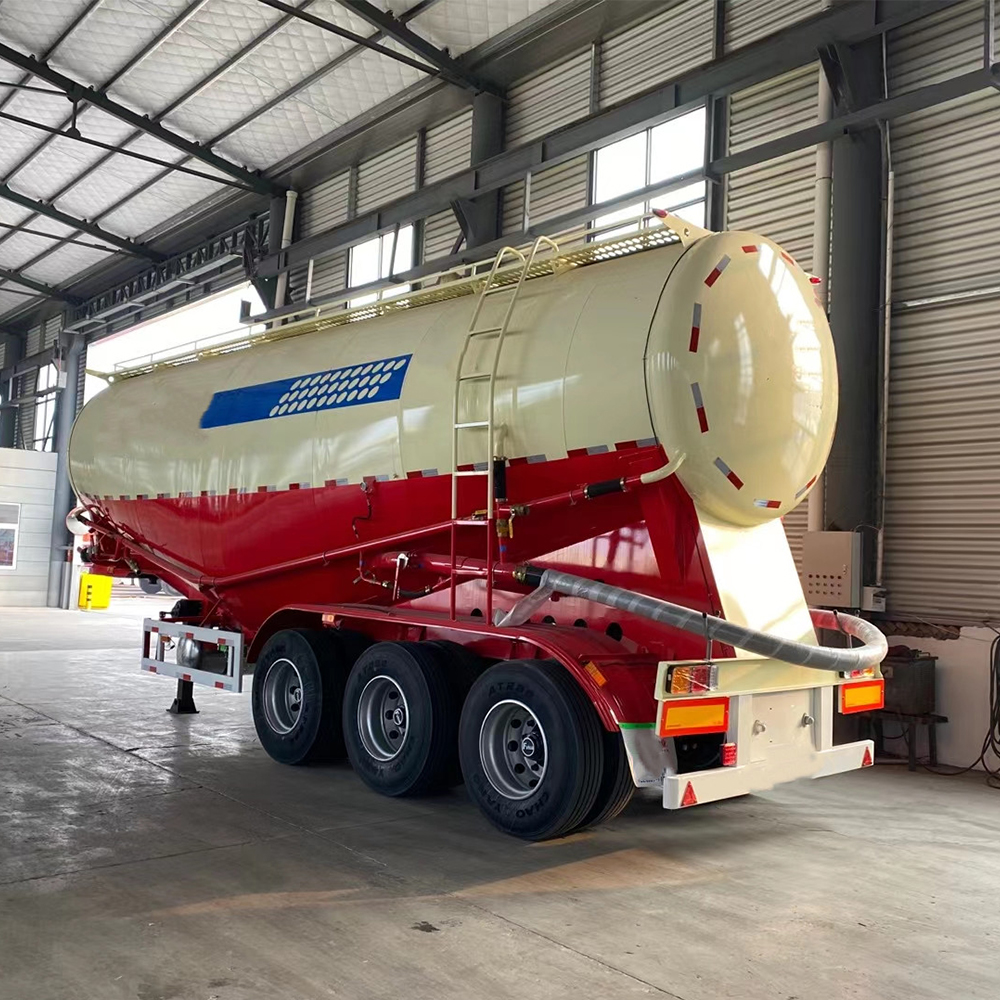

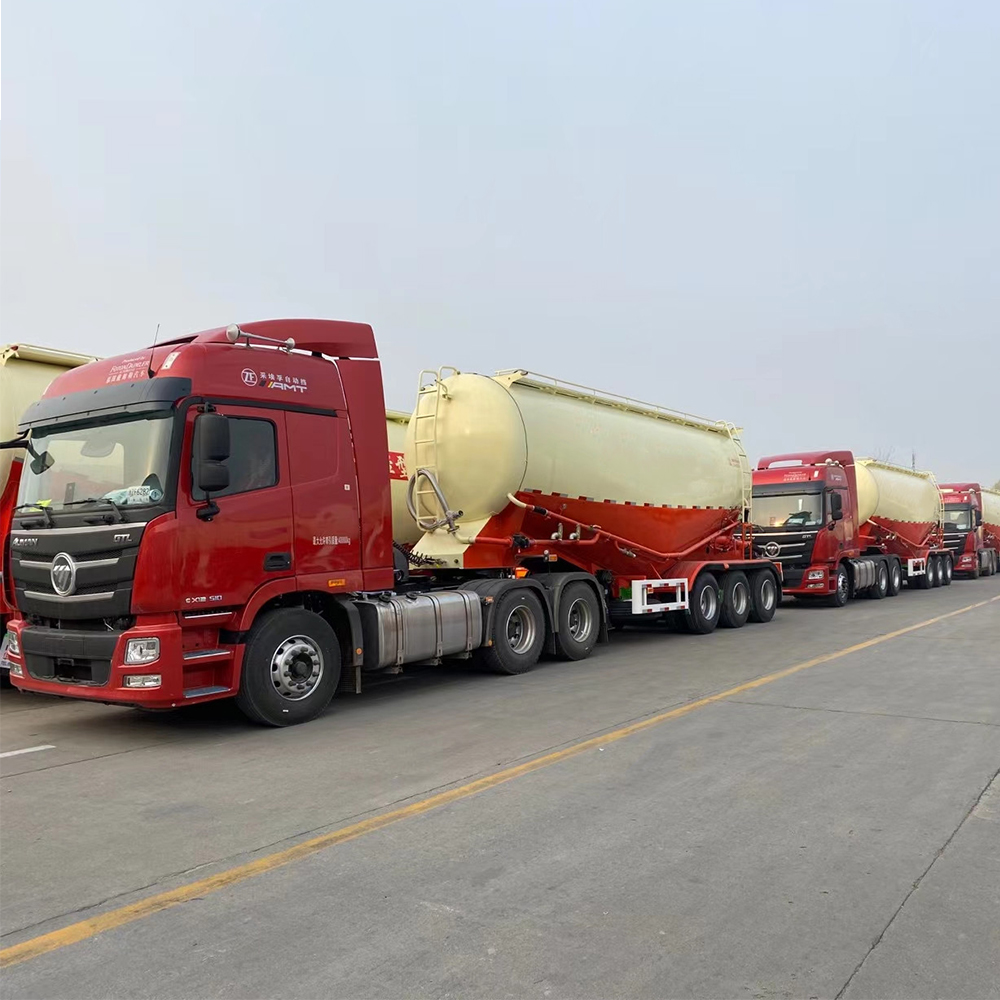

This Is Bulk cement Tankers, you can call it bulk cement tanker trailer or tanker truck ,this tanker body can be design install on the truck chassis directly or you choose 6*4 truck head connecting with cement tanker trailer directly .

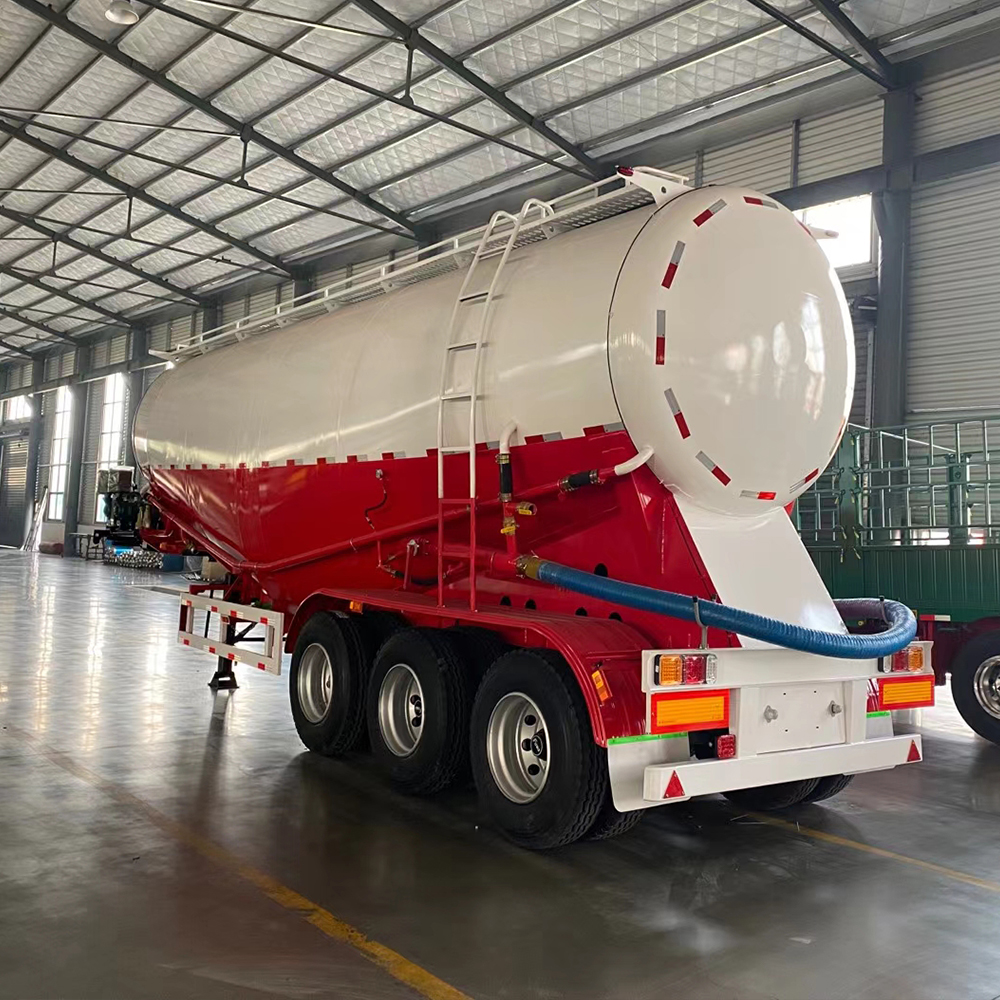

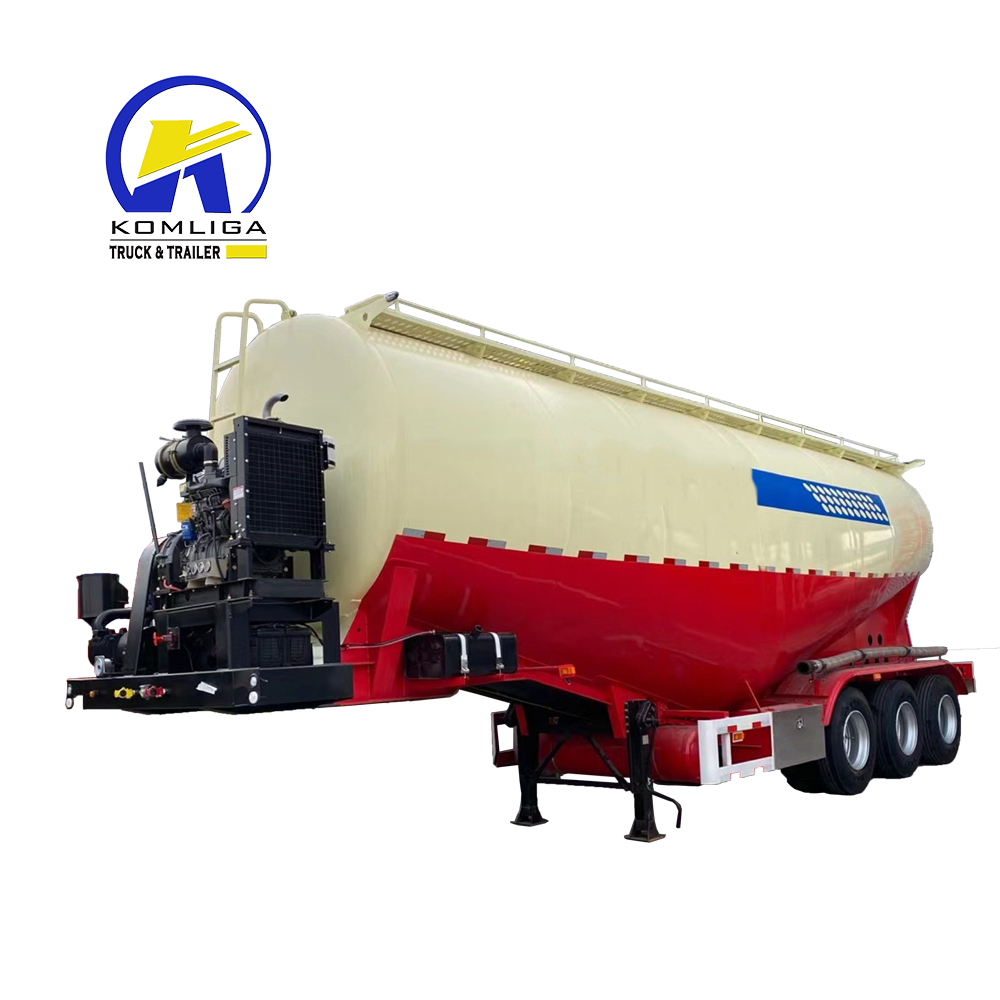

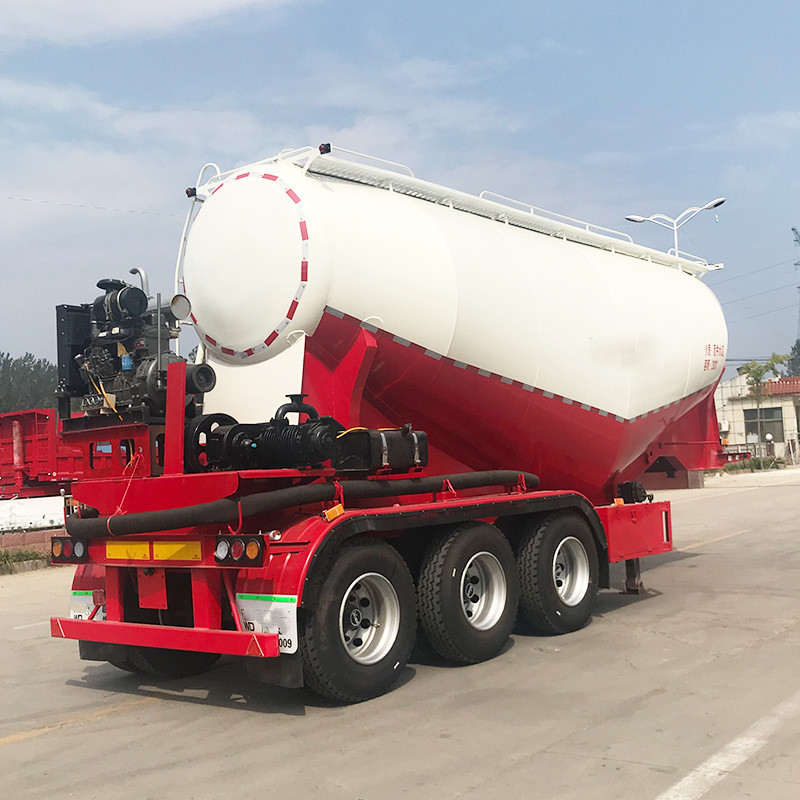

45m3 cement tanker semi-trailer Main Dimensions

Tank Body

Shape: Optional ( One Silo with V type)

Dimension: 12000mm*2490mm*3990mm ( Exact size depends on the final design)

Tare weight: About 9600KGS

Total Volume（m3）: 30m³-45 m³

Tanker Body Material: 5mm / Q235 carbon steel

End Plate: 6mm or 5mm /Q235 carbon steel

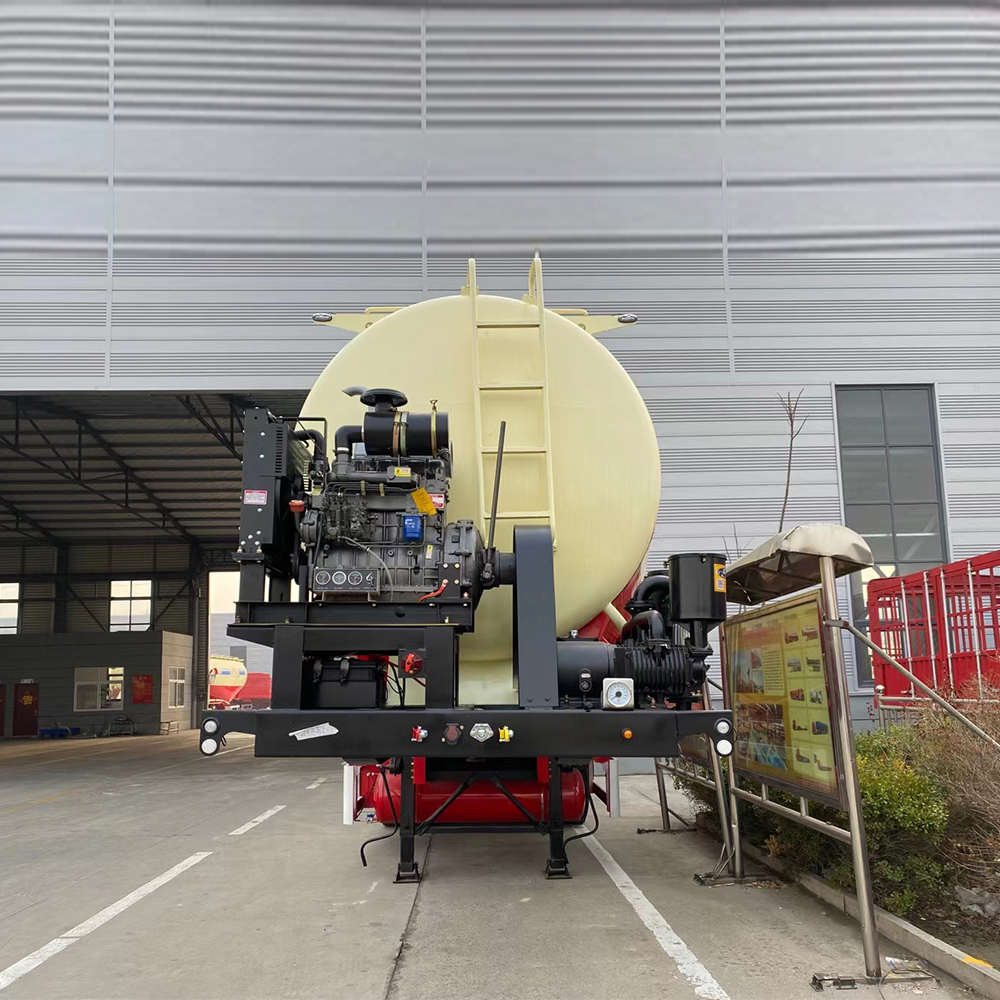

Diesel Engine: WEICHAI ，Tianhe 4102 or other brand

Compressor: BOHAI 12 m³or other brand

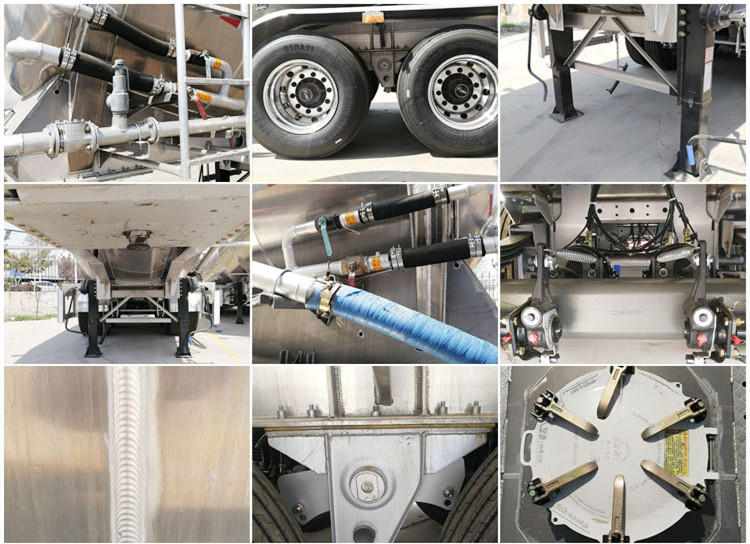

Manhole Cover: Carbon steel ∮500mm

Discharging Valve: Diameter is 3 or 4 inch

Discharging Pipe: 3 or 4 inch rubber hose, 1pcs, 6m/each

Cat Walk With (Common model or special movable design)

Chassis

Main Beams: Weldding Design ,Q345 carbon steel

Axle : 3 axles, /13T, FUWA/HUAJING ,BPW brand

Landing Gear: JOST (C200T） FUWA28T double speed type

King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension special export type

Leaf Spring: 90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30/T30 Spring brake chamber ; 45L air tanks.

Rim: 8.25-20 or 9.00-22.5 China Brand

Tire: 11.00R20 or 12.00R22.5,315/80R22.5 Brand can be Optional

ABS: Optional

Painting: Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories: One standard tool box with tire spanner or axles cover

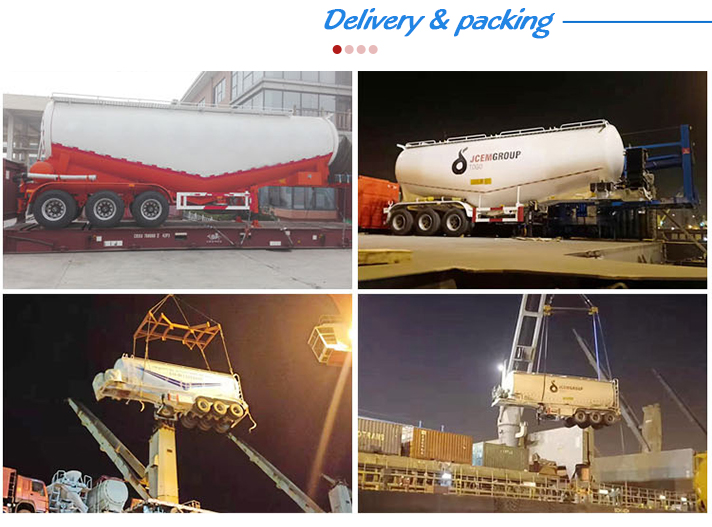

Shipping Terms: By Bulk Cargo ,RORO or bus deck container ,frame container
