$15000
We produce and sale 40tons low bed semi trailer ,60tons road roller transport trailer , 50tons excavator transport trailer, Lowbed semi trailer , Lowboy semi trailer for sale , Equipment trailers, cheap trailer for sale ; size can be 10m to 16m , width can be custom.
Model Number
LAT9300TDP
Product

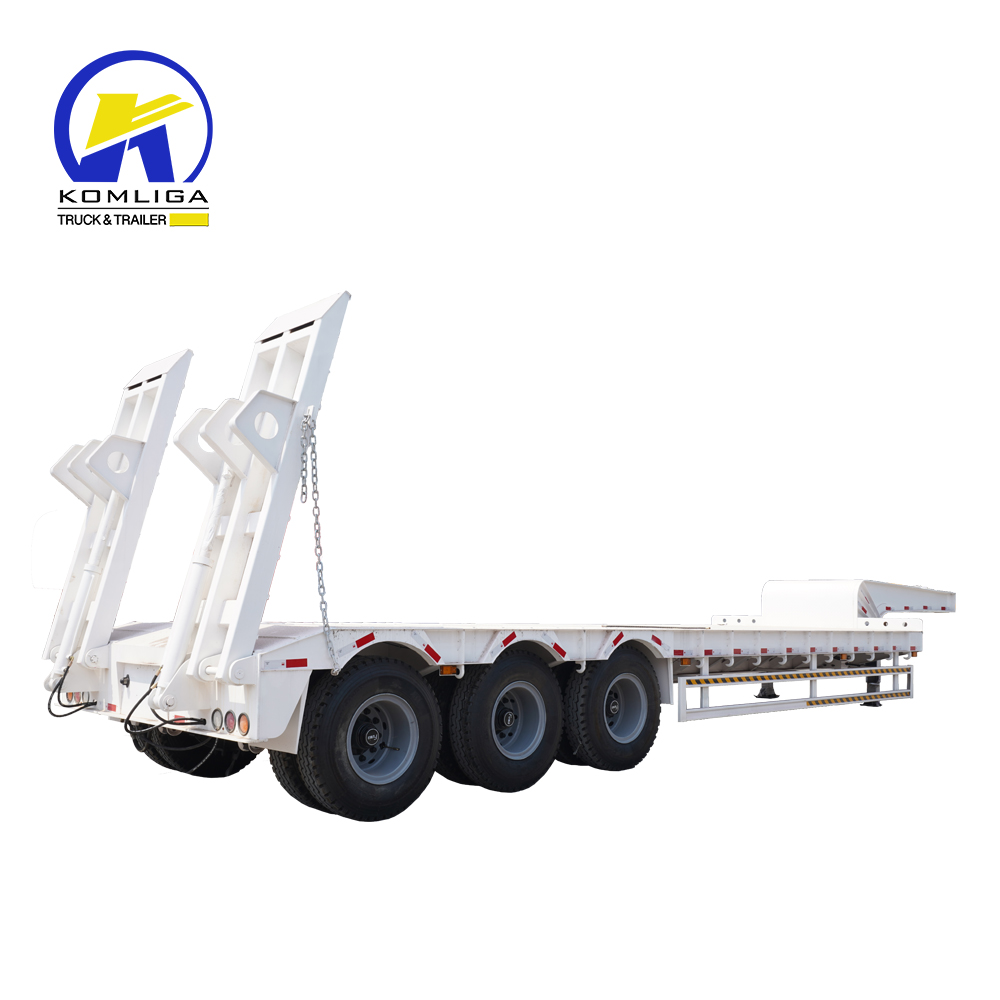

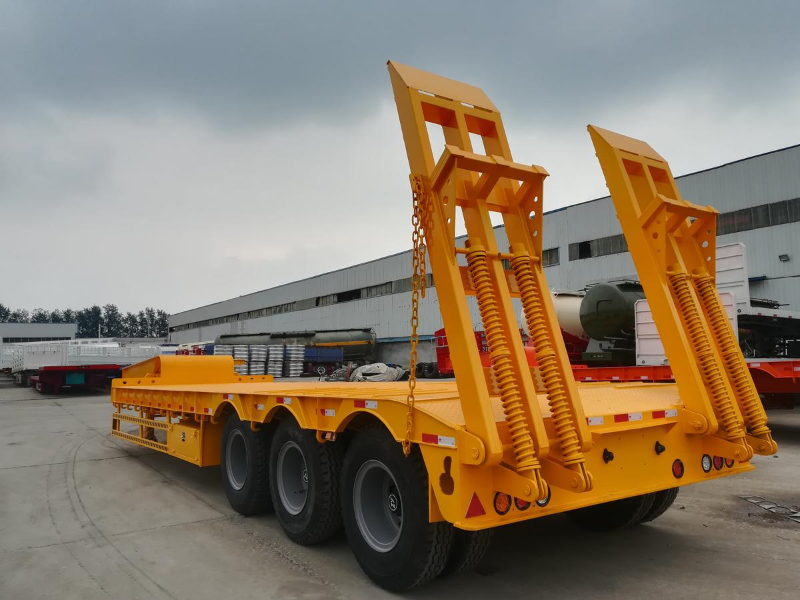

3/4 axles heavy duty low bed semi trailer (HOT SALE)
Color
Any color available as client's need
Rated Load
50-80 Tons
Tare Weight
7-9 Tons
Tyre Specifications
11.00R20 / 12R22.5
No. Of the Tires
12/16
Axle
13 Tons Fuwa / BPW
No. Of the Axles
3/4
Leaf-spring
10
Suspension
Leaf spring / Air suspension
Outside Dimensions
12500-17000*3000*1600 (mm) (L*W*H)
Main Beam Material
Q345B manganese plates, automatic submerged arc welded
Upper:20mm, Lower:20mm, Mid web:12mm
The height of beam:500mm, "I" type beam
Brake Air Chamber
Double chambers
Floor
Steel sheet 4mm thickness or diamond plate
King Pin
2 & 3.5 exchangeable king pin
Landing Gear
28000 kg
Spare Wheel Carrier
One set of spare wheel carrier
Accessory
One tooling box with a set of standard trailer tool
Electrical System 24V, 7core socket, lights according to European standards.
CONTACT ON LINE
