WATER TRUCK
Sinotruk HOWO, Shacman, Beiben, SEM, Foton, Weichai etc

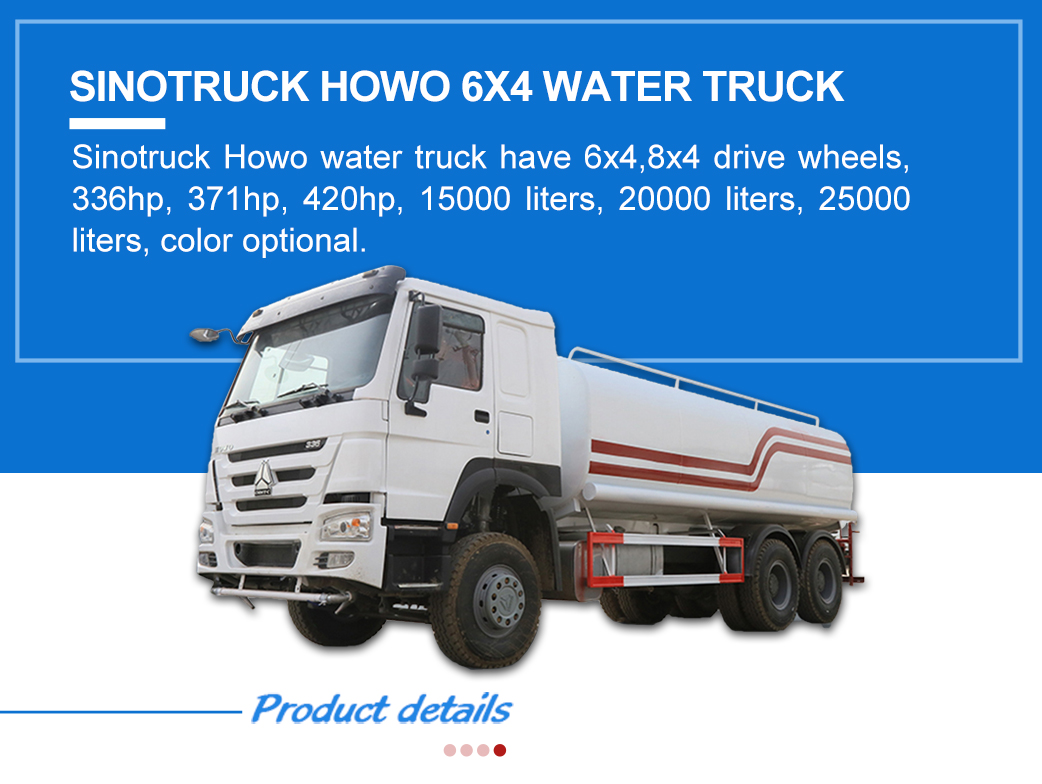

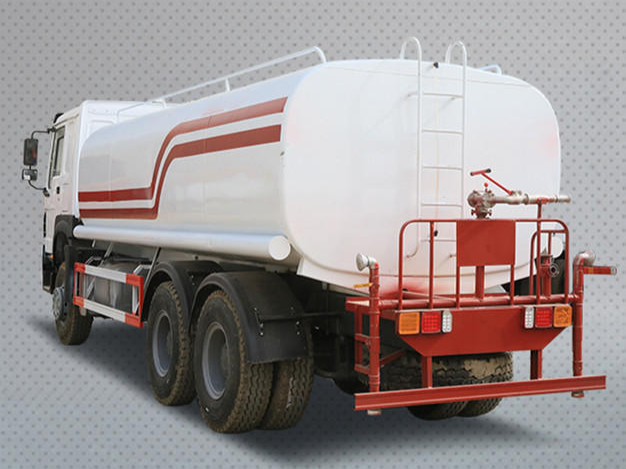

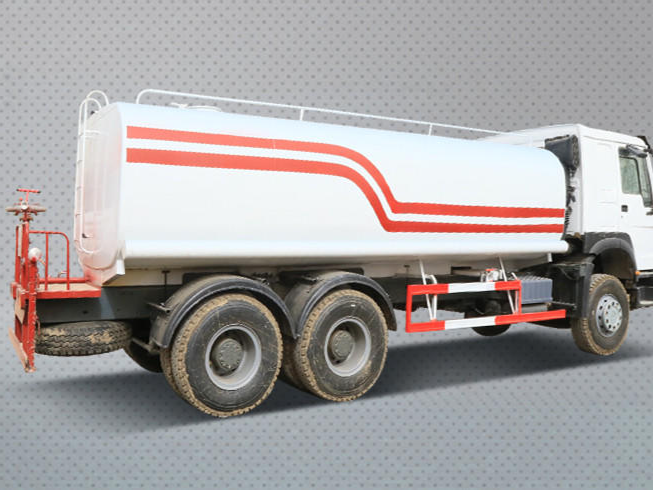

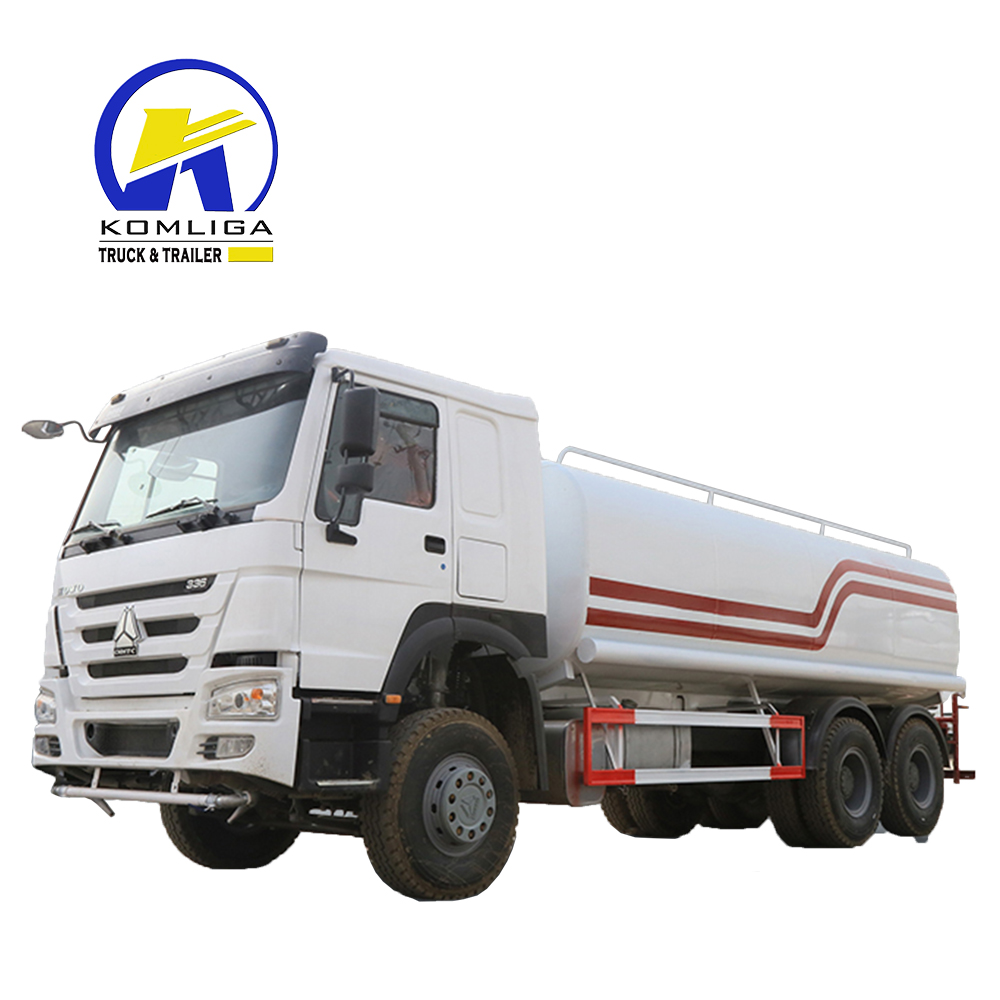

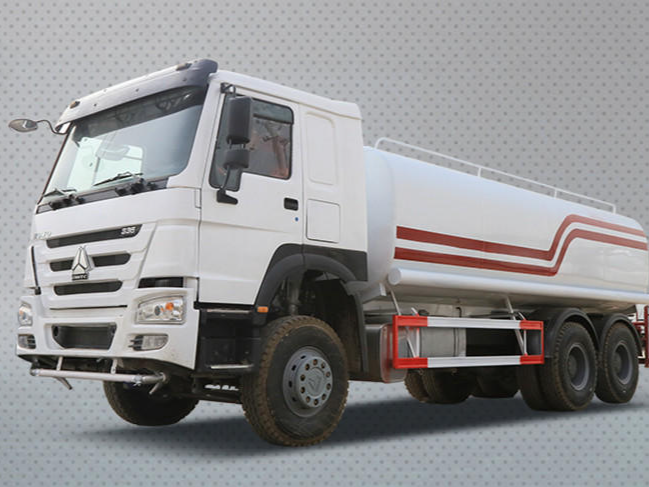

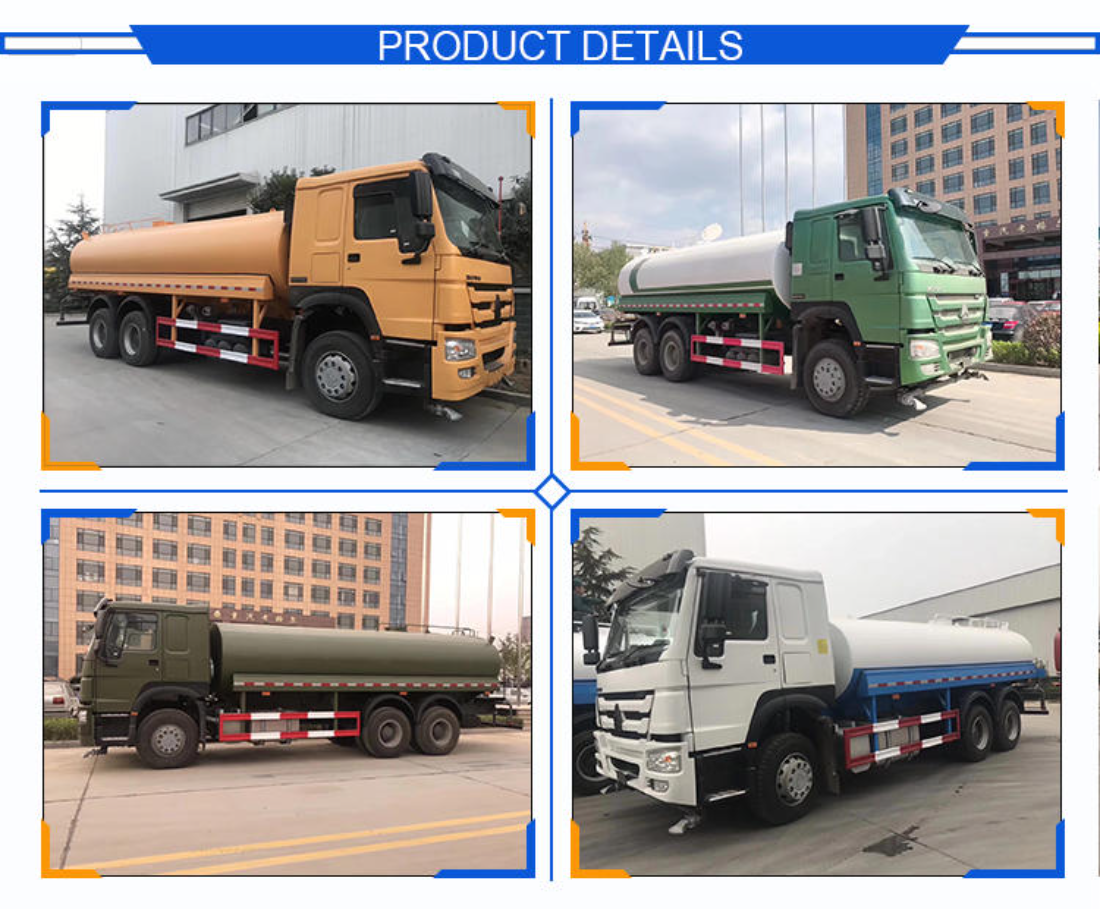

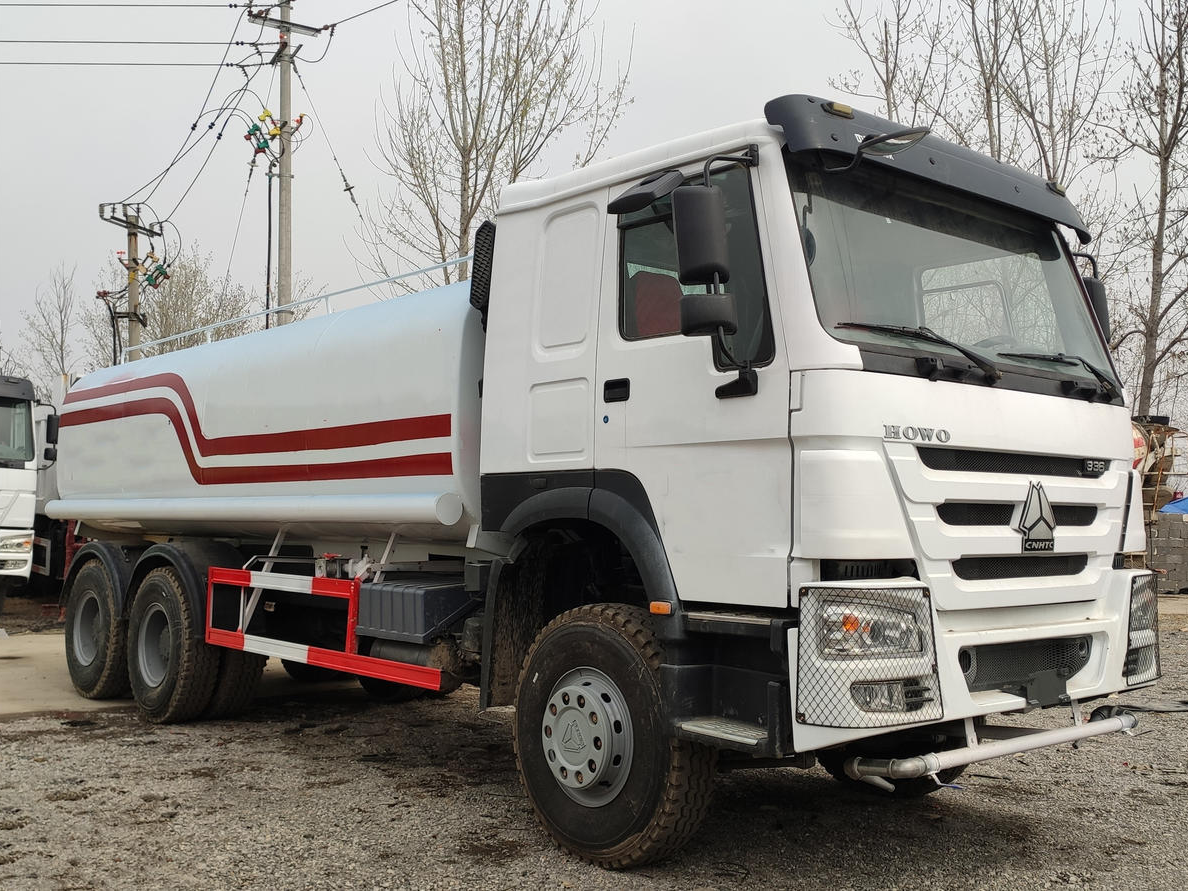

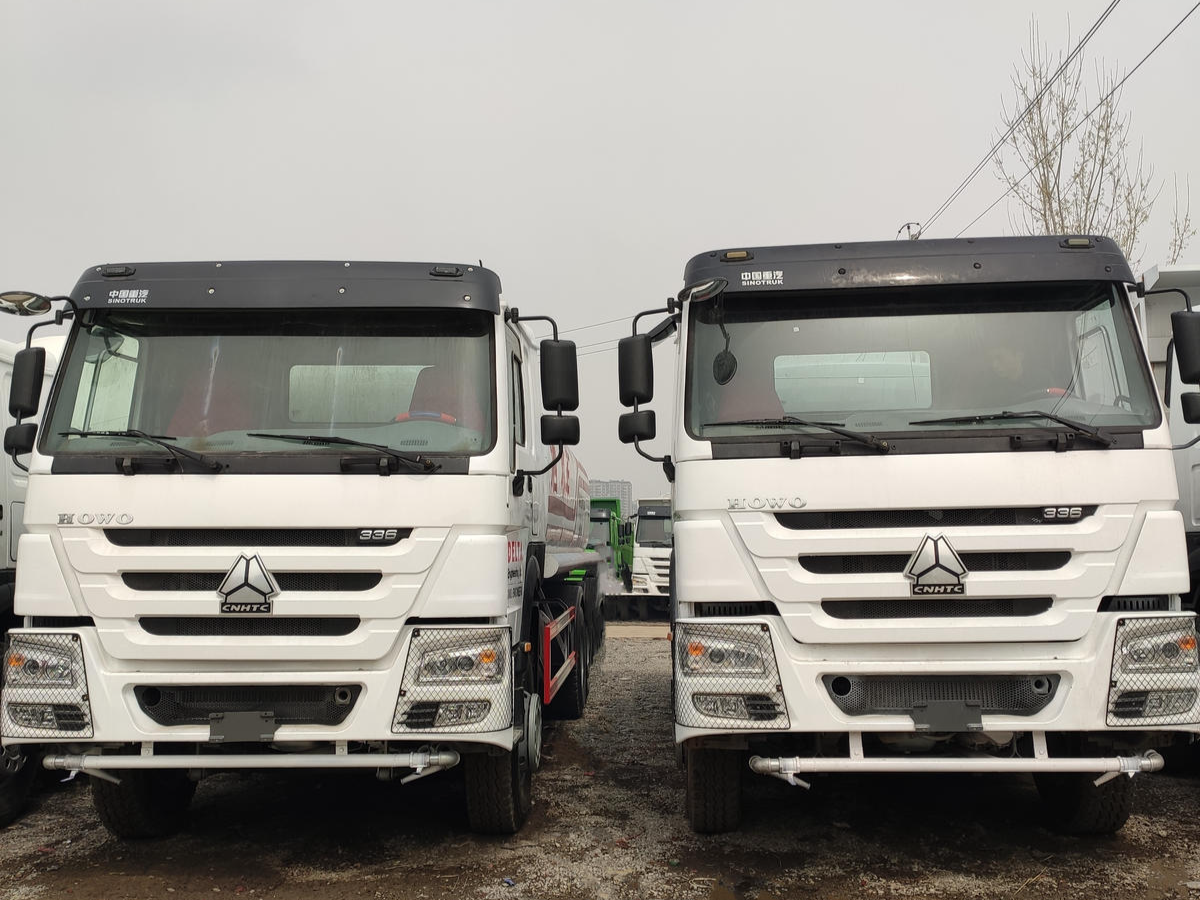

HOWO 10 Wheels 20cbm Road Sprinkler / Water truck
$25000
Water Sprinkling Truck also named road water tank truck is widely used to various roads sweeping, such as: trees, green plants belts, lawns, roads, plants, construction building, high buildings washing. It has functions of sprinkling, dust pressing, high-low position spraying, pesticide spraying and guardrail washing, and also can transport and drainage water for fire emergency situation.
More Specifications:
Model： ZZ1257M4641W
Color： The color of the truck is white while the decoration color of the water tank is green
Left hand drive
Types of vehicles： Special vehicle
Vehicle models： JYJ5250GSSA
Driving axle： HW 1697 axle
Chinese brands： HOWO
English brand： SINOTRUK
Gear box： HW 15710 10F/2R
Steering： ZF8098,with steering power assistant
Engine model： WD615.87 290HP Euro II
Engine power(kw): 213
Engine capacity: 9726
Engine manufacturers: SINOTRUK
Fuel tank: 400 L
Dimension (mm): 10100×2496×3300
Capacity of tank: 20000L
The total mass(kg): 25000
Rated contained mass(kg): 12300
Curb weight(kg): 12570
Spring few films: 12/10
Approaching/departure angle(°): 15/10
Suspended before/after: 1320/2830
Wheel base(mm): 4550+1350
Axle-load: 7000,17990
Axle number: 3
Maximum speed(km/h) : 90
Tire quantity: 11 (one spare tyre)
Tire specification: 12.00R20,Radial tires
Water tank volume: 20CBM
Working speed: 5-10Km/h
Sprinkling width (m): ≥14-18
Vertical range (m): ≥26
Side spray and rear sprinkler: Water pump flow rating:60M3/h
Cabin: HW76 /long cab, 1bunk, with A/C

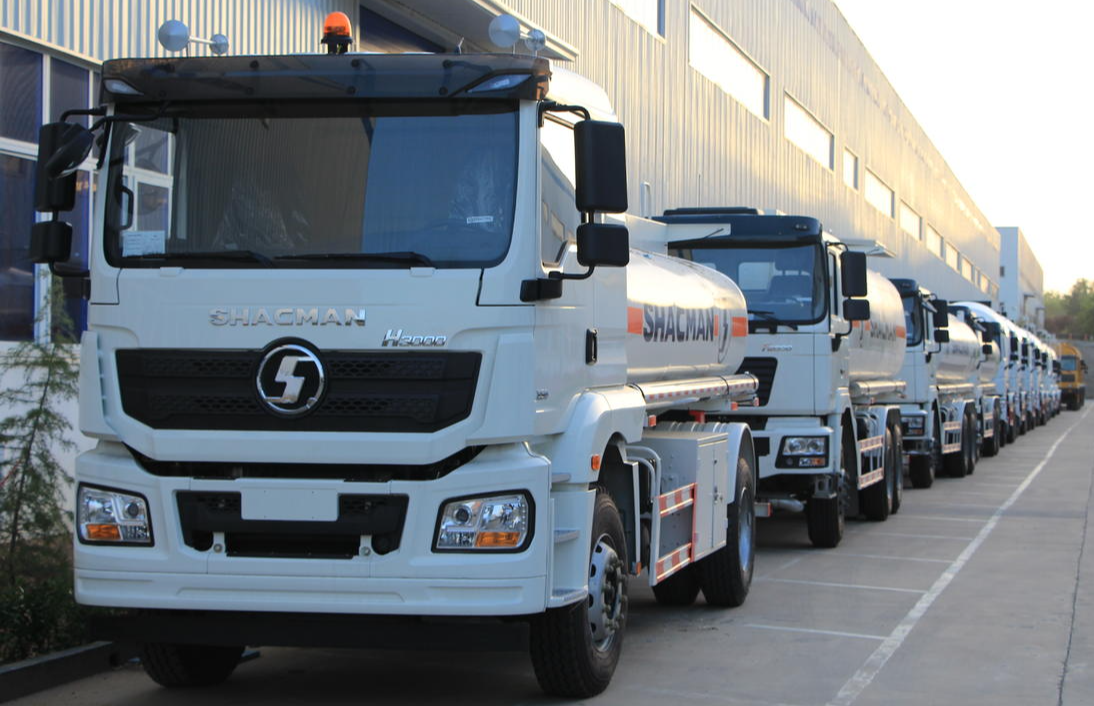

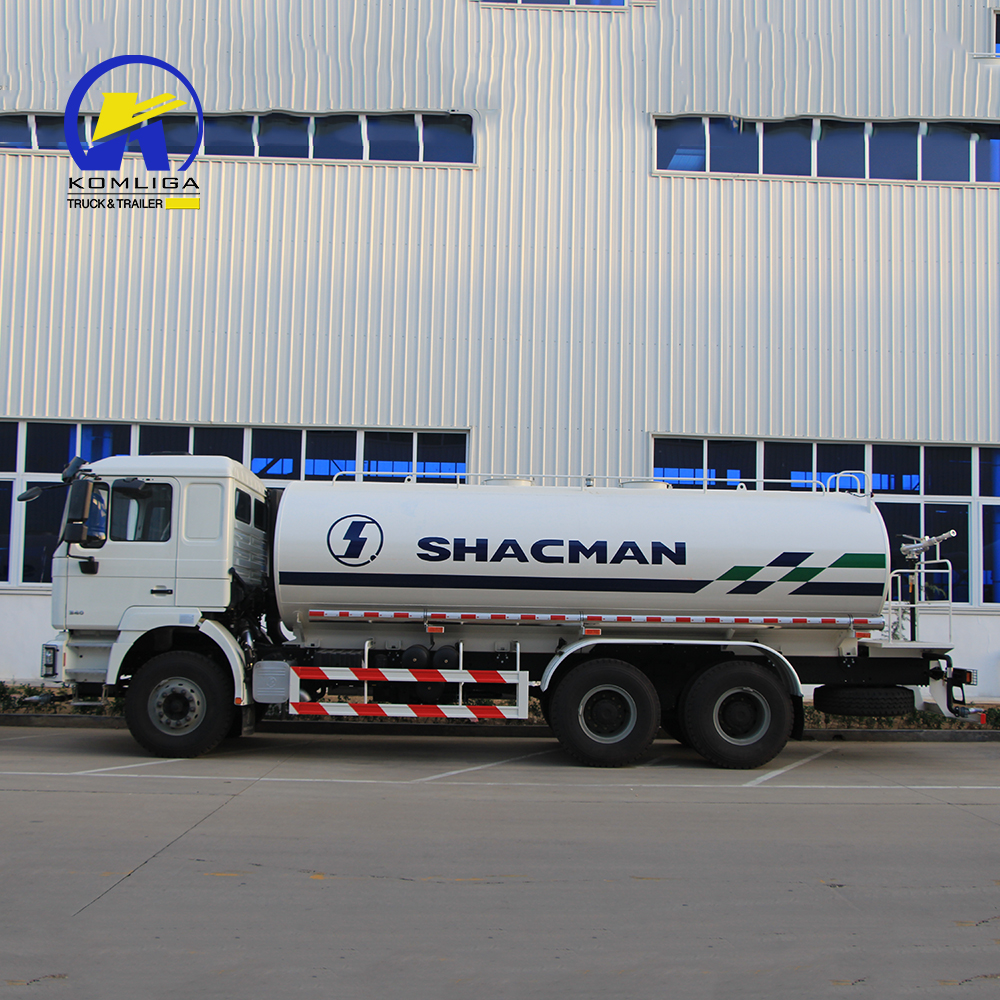

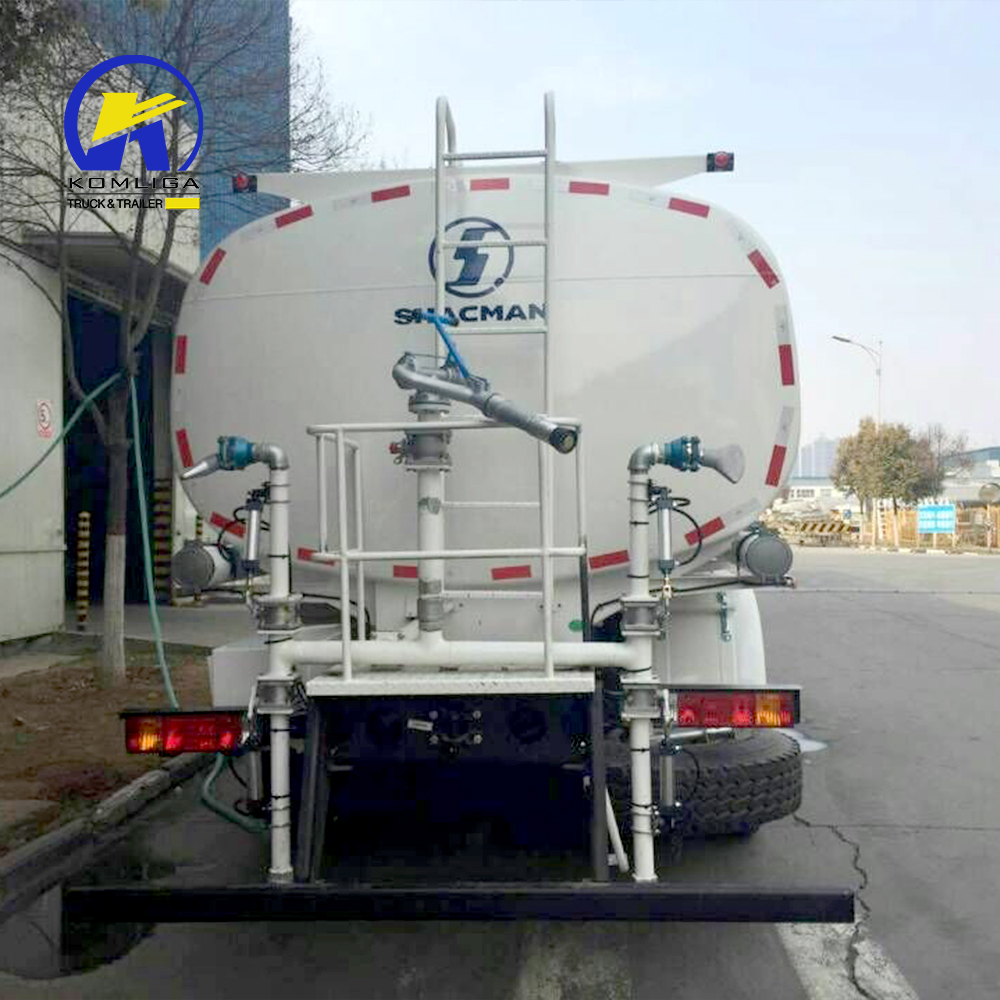

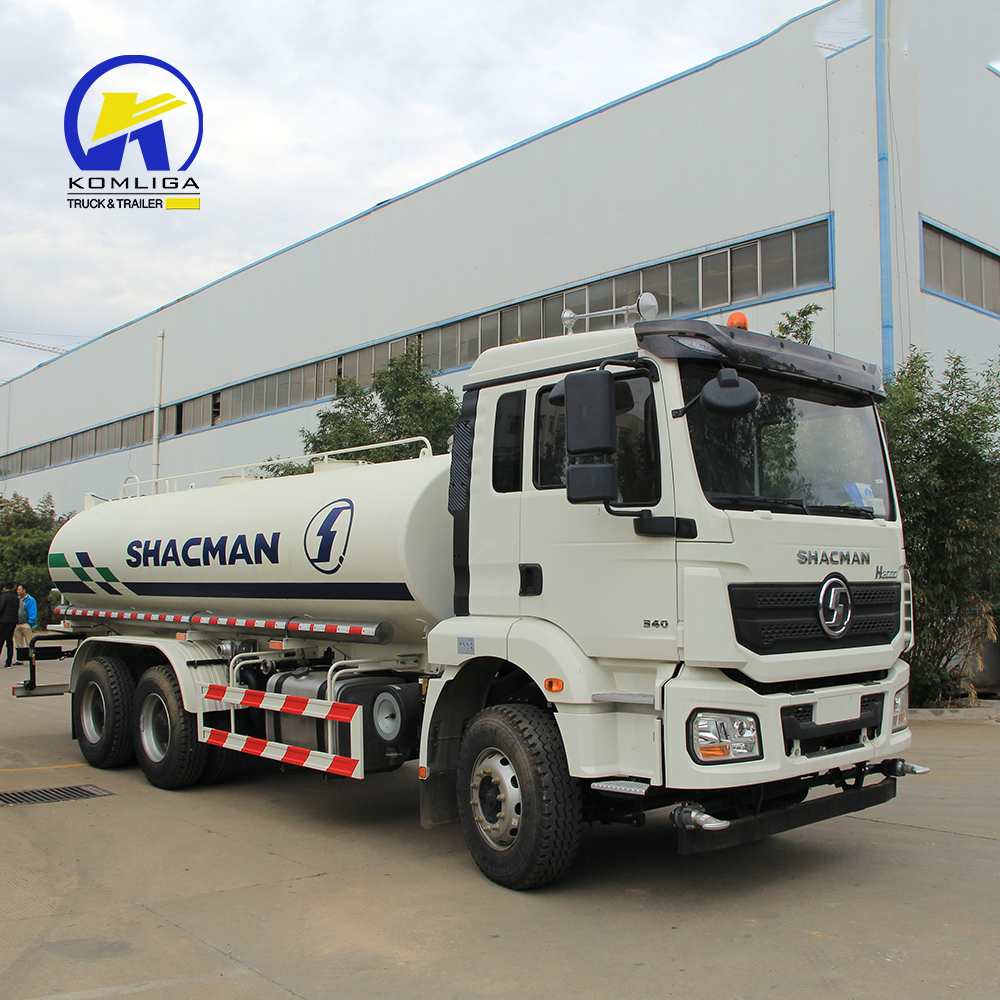

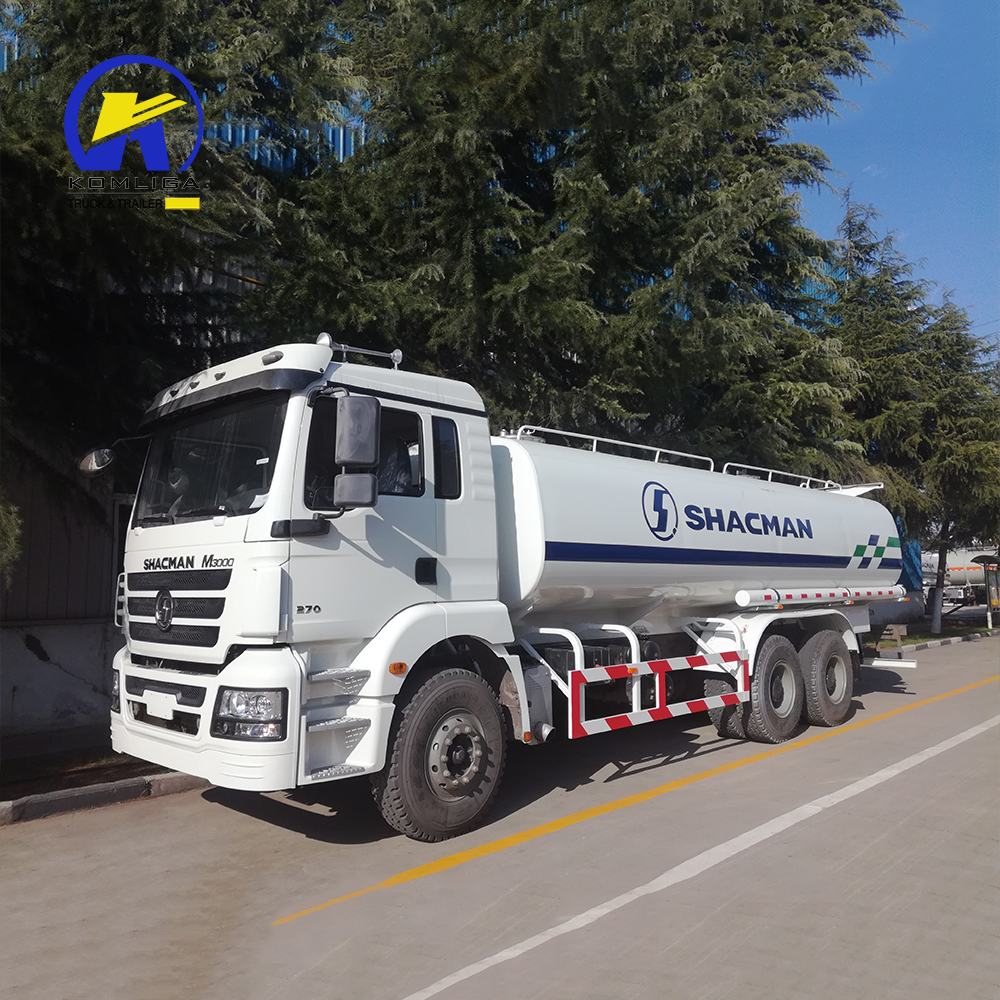

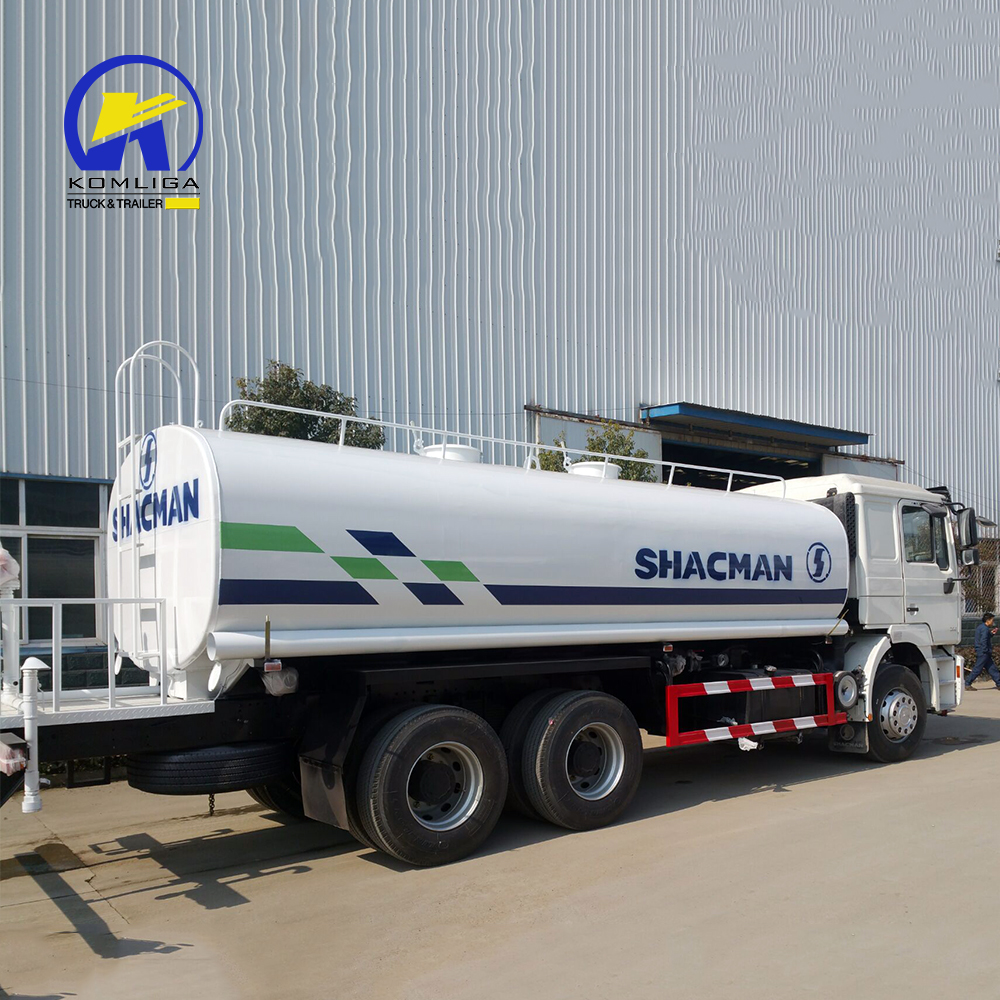

Shacman H2000 6x4 20m3 water truck
$25000
Water Sprinkling Truck also named road water tank truck is widely used to various roads sweeping, such as: trees, green plants belts, lawns, roads, plants, construction building, high buildings washing. It has functions of sprinkling, dust pressing, high-low position spraying, pesticide spraying and guardrail washing, and also can transport and drainage water for fire emergency situation.
More Specifications:
1. Chassis model: SX1254JM464;
2. Drive System: 6x4;
3. Overall Dimensions: 9935x 2490x 3210mm;
4. Tank volume: 20000L;
5. Cab: F2000 mid-long flat roof cab, single bed, A/C, manual window machine;
6. Engine: WD615.50( WEICHAI ), EUROII emission standard;
7. Horsepower: 290HP;
8. Gearbox: FAST Fuller 9JS119, 9+1 shifts;
9. Clutch: 430 Diaphragm type;
10. Steering: ZF technology;
11. Front axle: MAN 7.5T with drum brake;
12. Rear axle: 13Ton STR casting axle, final ratio 5.73
13. Tyre: 12.00-20;
14. Oil tank: 380L.
15. With power take offCONTACT ON LINE
