$15000
we produce KOMLIGA BRAND side wall semi trailer, three axles drop side semi trailer , 600mm height side wall , cargo traielrs for sale, 40ft side wall semi trailer size and color can be custom.
Product Parameters:
side wall height:600mm,800mm or 1000mm : axles: three or four , color: can be choose
we produce KOMLIGA BRAND side wall semi trailer, three axles drop side semi trailer , semi trailer manufacture,600mm height side wall semi trailer, semi-trailer supplier, cargo trailers for sale, 40ft side wall semi trailer ,truck trailer for sale ,heavy duty semi trailer ,semi-trailers ,cheap semi trailer for sale .
CTAC/TONGYADA BRAND semi trailer export to Russia , Africa ,Saudi Arabi, South America and Pakistan ,Whole Asia market
Tare Weight
About 7.6T
Dimension
13000mm*2490mm*2860mm
Loading Capacity (T)
≤ 60 T
Axle
13 T/16T, FUWA /BPW /Huajing Brand
Rim
9.00-22.5 8.5-20
Tire
12.00R22.5/ 315 80R22.5 11.00R20
Suspension
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin
JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg
JOST brand D200T or China brand 28Tons (Double speed)
Main beam
Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Side beam
16mm or 18mm channel steel ( Material is Q235steel ).
Side Wall
600mm-1500mm ，or can be do box type ,for choose
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; Two pieces of 45L air tanks ABS
Optional
Twist Locks
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve
WABCO valve
Light
LED light
Voltage
24V
Receptacle
7 ways (7 wire harness)
Tool box
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms: By bulk cargo carrier, RORO or 40HQ container. Payment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .

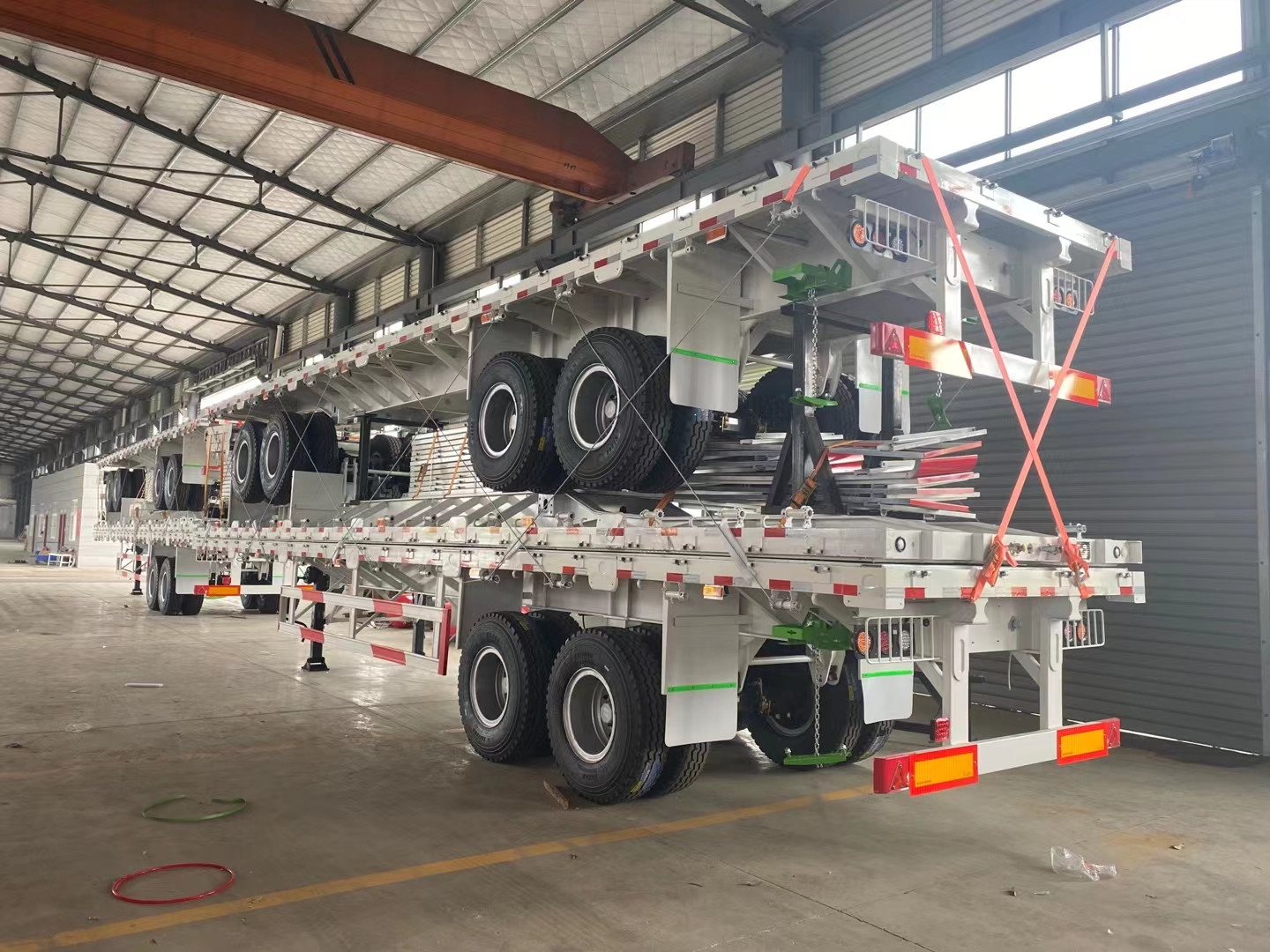

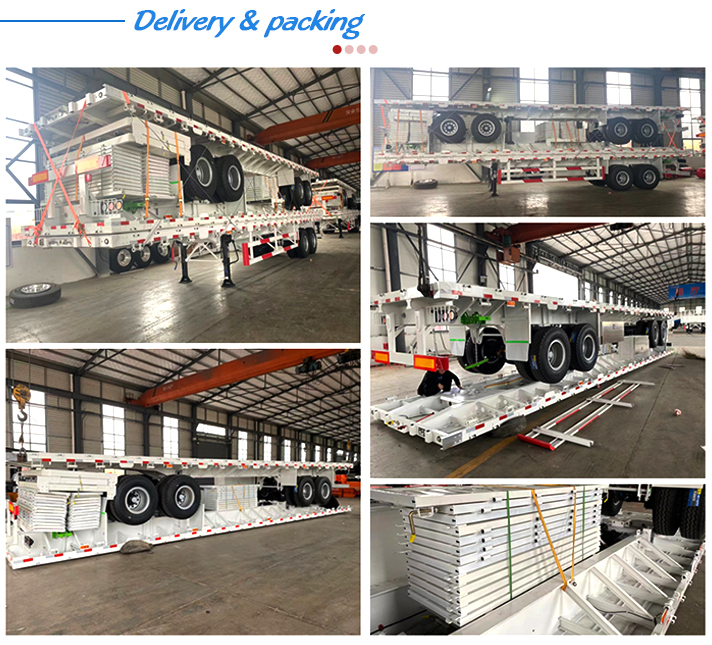

Shipment pictures for your reference:
Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
