40feet 3 Axle Tractor Flatbed Semi Utility Trailer
$15000
1) Manufacturer, more than 20yrs professional experience.
2) CCC, SGS and ISO9001 certificate, 6 month guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
dimensions (12375*2480*1500mm)
Tare Weight 7900kg
Payload 32100kg
Wheel track 1840mm
Wheel base 7445mm+1356mm+1356mm
STANDARD SPECIFICATION
Main Frame:
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
500mm Height, Top Flange 16mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
1)Floor:
Steel Sheet 3mm thickness
2)Axle
Three Units German or American type 13T 10 Hole axle.
3)Suspension
A couple of American or German Type mechanical 3-axle suspension.
4)Leaf Spring
Six sets of reliable local brand, 7-piece leaf spring, 16X90mm or 13 pcs, 100*11mm
5) King Pin
One unit of 2 Inch standard welded kingpin.
6) Landing Gear
Two-speed, manually operating, heavy duty FUWA or JOST Brand landing leg
7)Wheel Rim
Thirteen units of 8.25*22.5 rim
8)Tyre
Thirteen units of 11R22.5 Tubeless tyre
9)Twist Lock
12 sets ISO twist lock
10)Spare Wheel Carrier
One set of spare wheel carrier including a riser.
11)Pneumatic Braking System
Two unit of WABCO RE 6 relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.
12)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set of DAFA(brand ) 6-pin standard Cable.
13)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice
14)Accessory
One tooling box with whole set of standard trailer tool
For the specification above, we reserve the right to make any changes without notice.Technical Specifications Dimensions (L*W*H) mm: 12370*2480*1510 Fifth Wheel Coupling Height (mm): 1200 Loading Plate Height (mm): 1430 Front overhand (mm): 450 Number of wheel: 3 Wheel space (mm): 7445+1356+1356 Tyre Specification: 10.00-20 Steel rim: 7.5-20 Number of Tyre (pcs): 12 Tare Weight (kg): 6500 Rated Payload (kg): 33500 Total Mass (kg): 40000

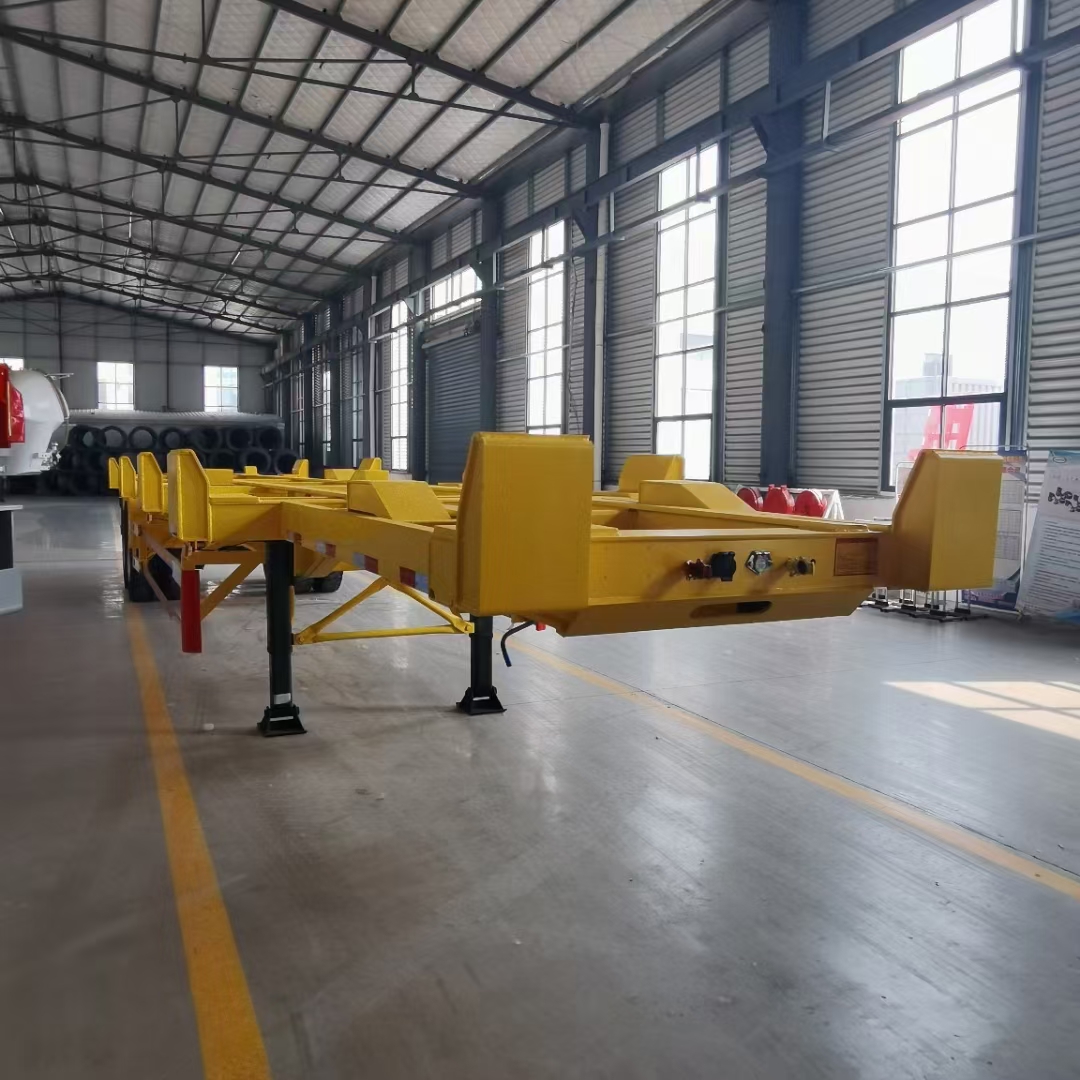

40FT SKELETON SEMI TRAILER
$15000
Komliga brand semi trailer manufacture produce container trailers for 2000 units per year , 40% of them for export market ,the other 60% for china market . the container trailers we also can calling 40ft skeleton semi trailer ,container transport semi trailer
More Specifications:
40FT SKELETON SEMI TRAILER –Delivery for 40FT or 20FT containers.
Container transport semi trailers , loading for 30tons to 50tons.
zny color you wanted ,and can print your own mark : 2 axles or 3 axles for your choose
Gross Weight
About 5.6 tons
Outer side dimension (mm)
12450 × 2490 × 1557 (three or two axles) 40FT
Loading Capacity (Ton)
≤ 50 T (40FT)
AXLES
13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand
Tire
12.00R22.5 or 315/80R22.5
Rim
9.00-22.5 China Brand
Suspension
Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand )Spring leaf
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin
JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg
JOST brand D200T or China brand 28Tons (Double speed)
Main beam
Height:500mm, upper plate is14mm, middle plate is8mm,
down plate is 16mm ; Material is Q345B Steel .Side beam
16mm or 18mm channel steel ( Material is Q235steel ).
Brake chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; Two pieces of 45L air tanks
Twist Locks
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve
WABCO valve
ABS
Optional
Light
LED light nangua brand
Voltage
24V china famous brand nangua brand
Receptacle
7 ways (7 wire harness)
Tool box
One piece,1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms: Transport by bulk cargo carrier, RORO or 40HQ container. CONTACT ON LINE
