Product Parameters:

Brand: KOMLIGA

Compartments : 1-8 can be choose

Capacity : 20-60m3 can be choose

Tanker body : 5mm or 6mm carbon steel

Suspension : common mechanical suspension

Specification : depend on your idea

Main Dimensions

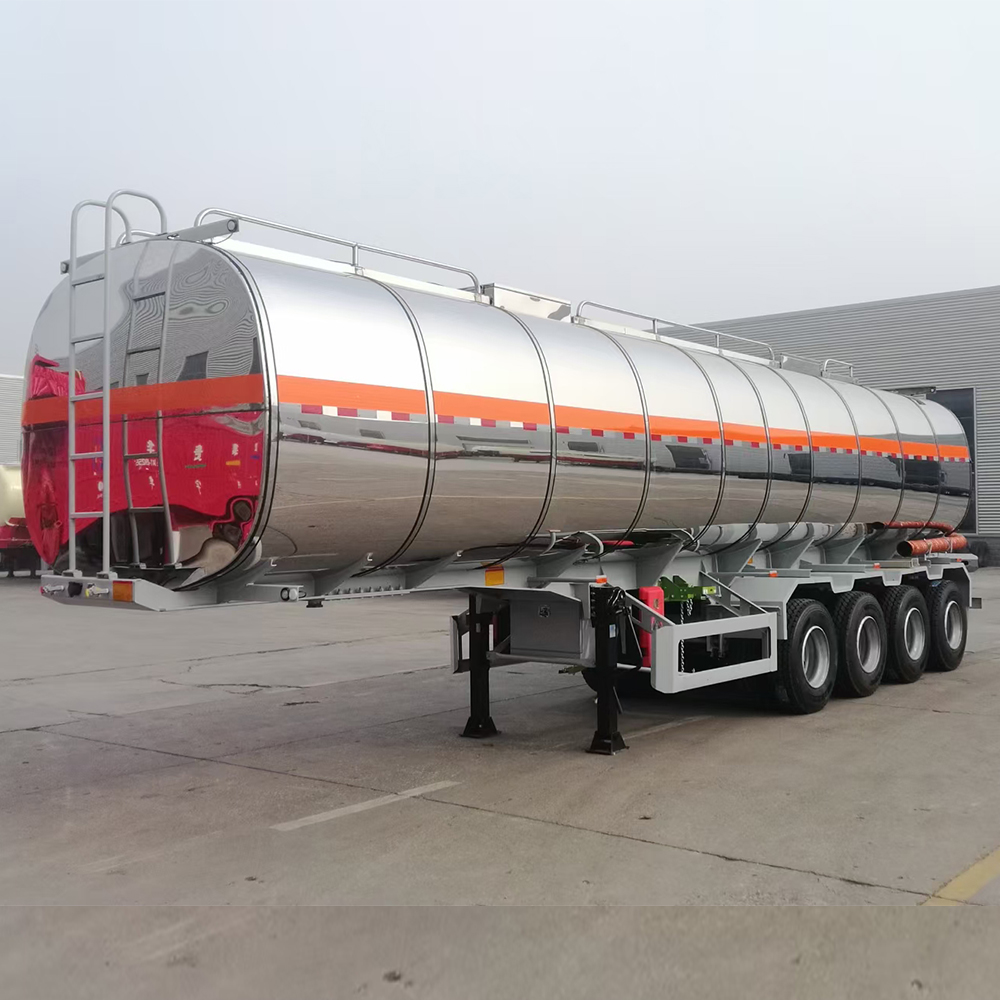

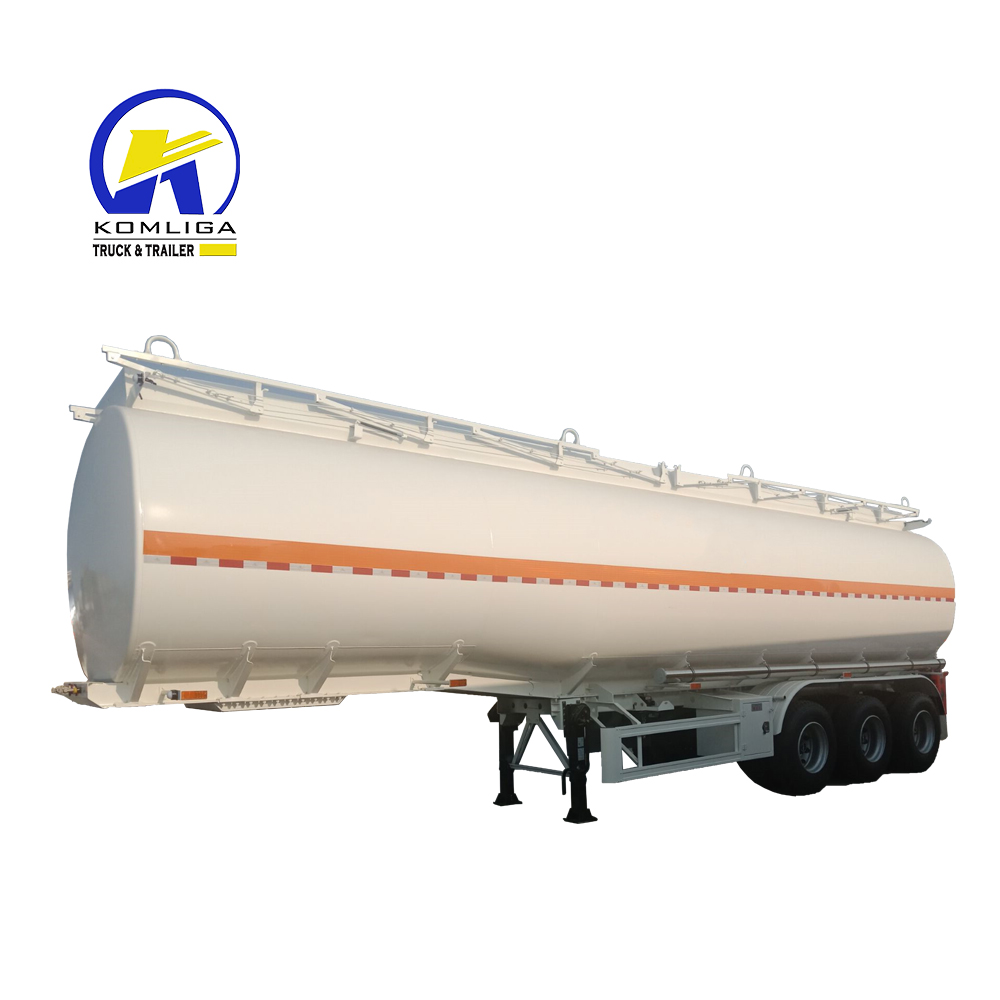

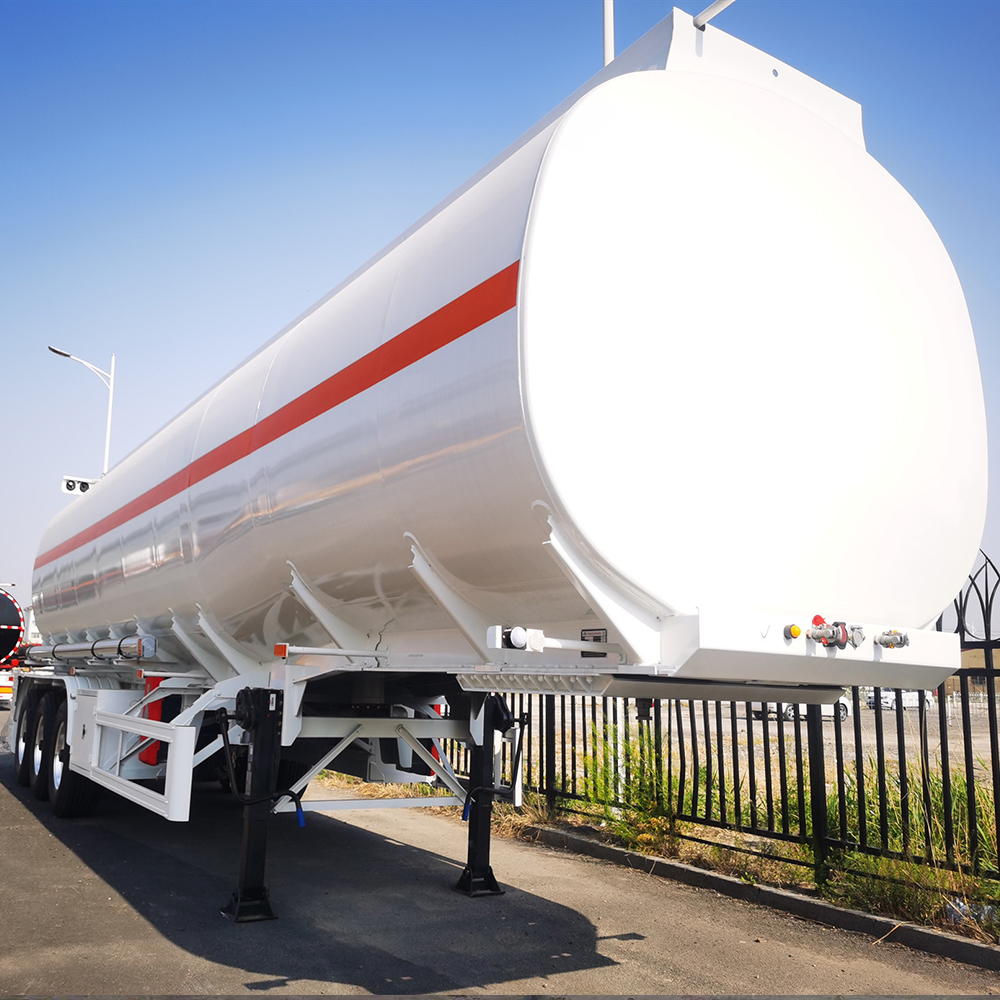

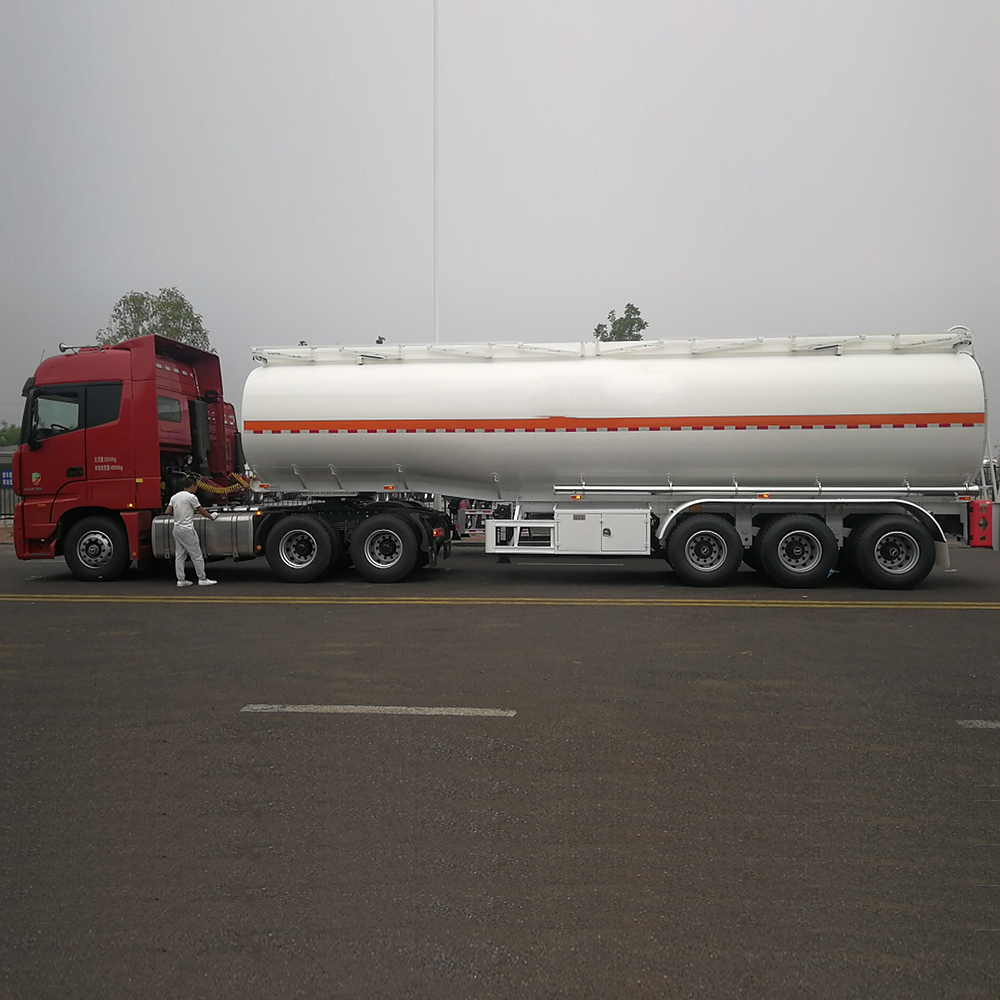

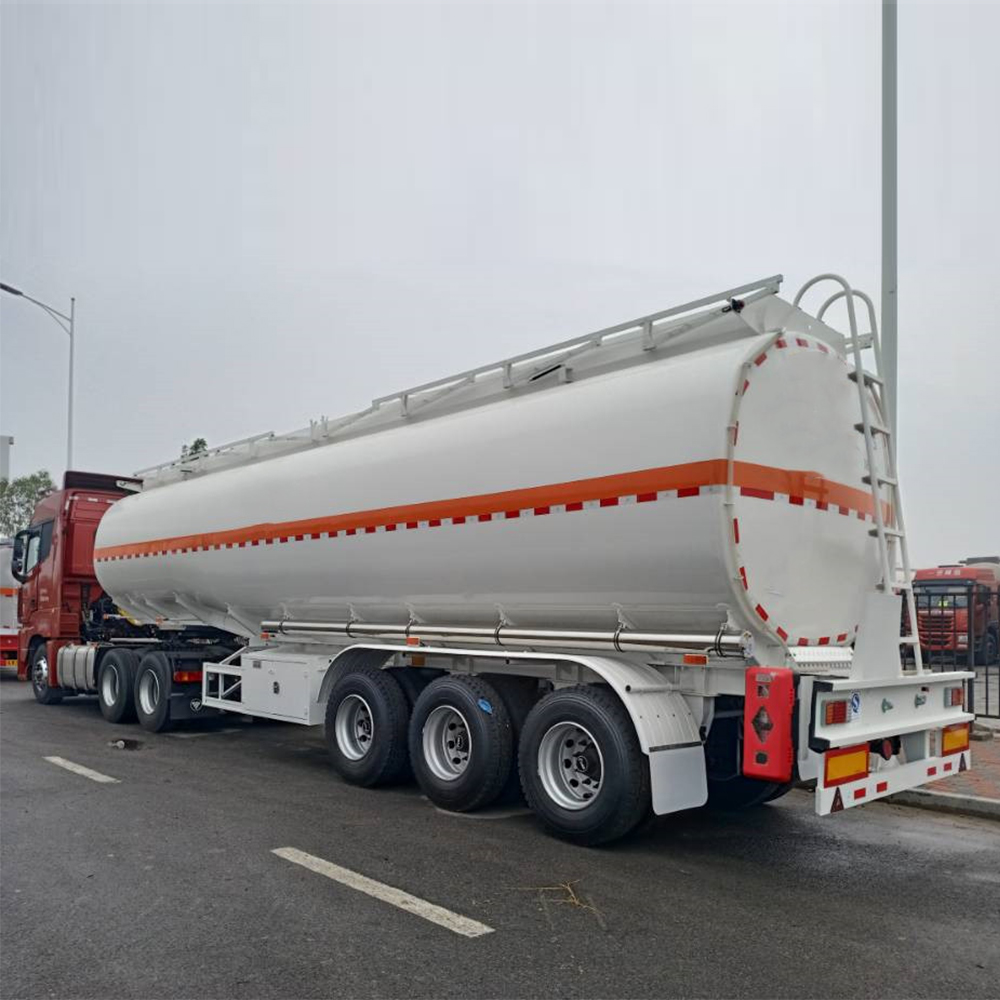

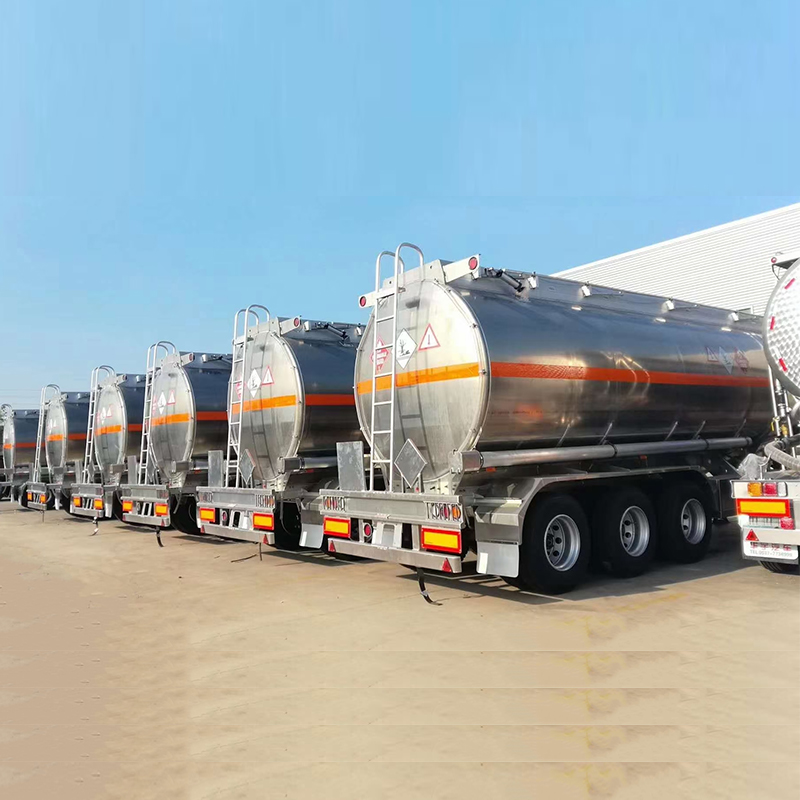

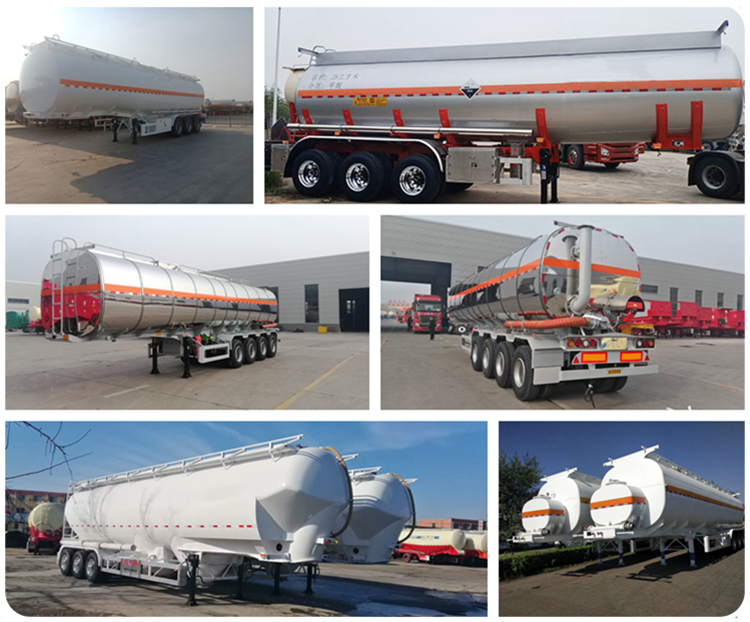

Tank Body

Shape: Optional ( Round or Suare)

Dimension: 12000mm*2490mm*3990mm ( Exact size depends on the final design)

Tare weight: About 8000KGS-12800KGS

Total Volume(m3): 25m³-60 m³, Please choose

Tanker Body Material: 5mm or 6mm/ Q235 carbon steel

End Plate: 5mm or 6mm /Q235 carbon steel

Manhole Cover: Carbon steel or Aluminum alloy API manhole cover, 500mm

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional, Please choose

Discharging Pipe: 4” rubber hose, 2 pcs, 6m/each

Cat Walk: With (Common model or special design)

Chassis

Main Beams: Welding design or Special design I beam, connected by bolts and nuts, Q345 carbon steel material

Axle: 2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear: JOST (D200T)or CHINA BRAND 28T

King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension/Germany or America type /air suspension

Leaf Spring: 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without

Pneumatic Braking System: WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks.

Rim: 9.00-22.5/8.00-20/8.5-20 China Brand

Tire: /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS: Optional

Painting: Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories: One standard tool box

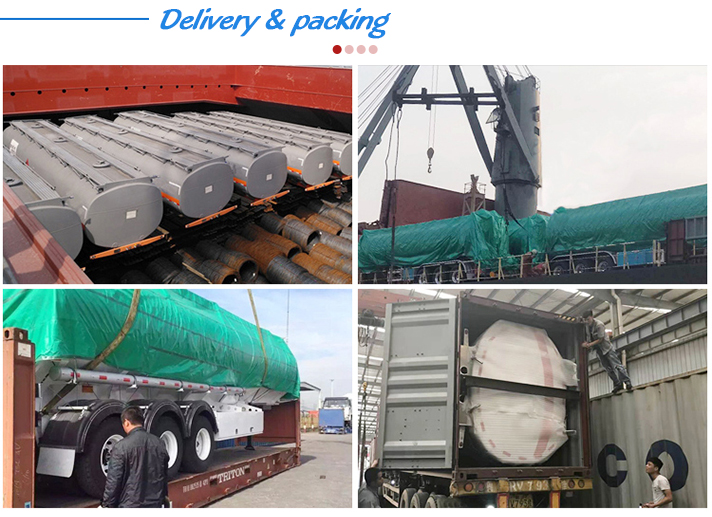

Shipping Terms: By Bulk Cargo ,RORO or 40HQ Containers
