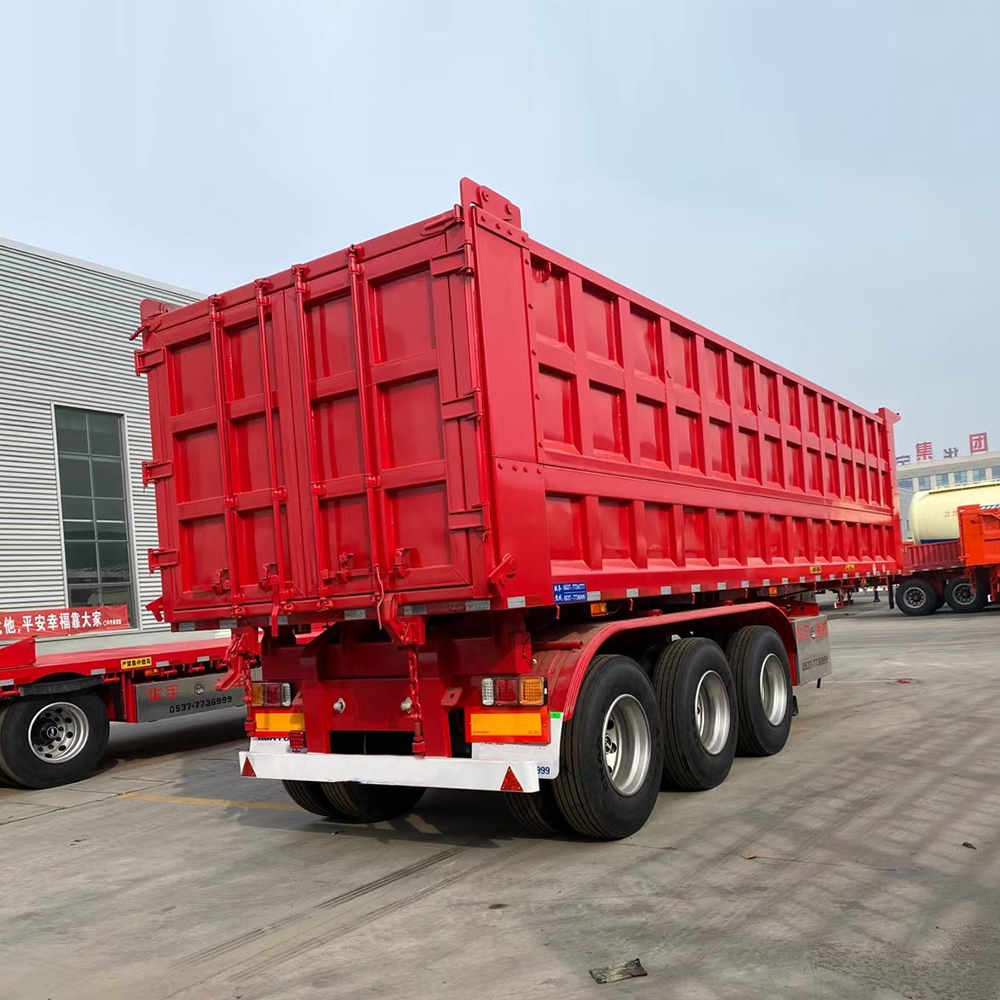

TIPPER DUMP TRAILER
$15000
We are factory of some kinds of semi trailer, like side wall semi trailer, fence semi trailer, trailer for transport cattle, stake semi trailer, drop side semi trailers, side trailer, fence trailer, trailer for cattle, utility trailer siding, cargo semi trailer.
Product Parameters:
DUMPING/TIPPER SEMI TRAILER DELIVEY FOR Sands, Stone , Coal, limestone ,working in mounting, hill or coal station , electric factory ETC
Main Dimensions Dimension 11280*2495*3970mm ( outside), 10500*2300*1700mm (work space ) size can be your choose Tare weight
About 15600KGS
Total Volume (m3)
37 m³ or less than 60tons
Side wall thickness（mm）
mm Q235 steel
Bottom plate thickness(mm)
8mm /Q235 steel
Lifting system
Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder, (FC196 MODEL use for 9 m length trailer)
Chassis Main Beams
Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle
3 axles, FUWA/HUAJING brand 16tons per axles
Landing Gear
JOST (D200T）or CHINA BRAND 28T
King Pin
JOST 2.00 or 3.5 inch bolt-in king pin
Suspension
Mechanical suspension/ America type /
Leaf Spring
90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System
WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.
Rim
9.00-22.5/8.00-20/8.5-20 China Brand
Tire
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS
Optional
Painting
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories
One standard tool box
Shipping Terms
By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
