MIXER TRUCK
Sinotruk HOWO, Shacman, Beiben, SEM, Foton, Weichai etc

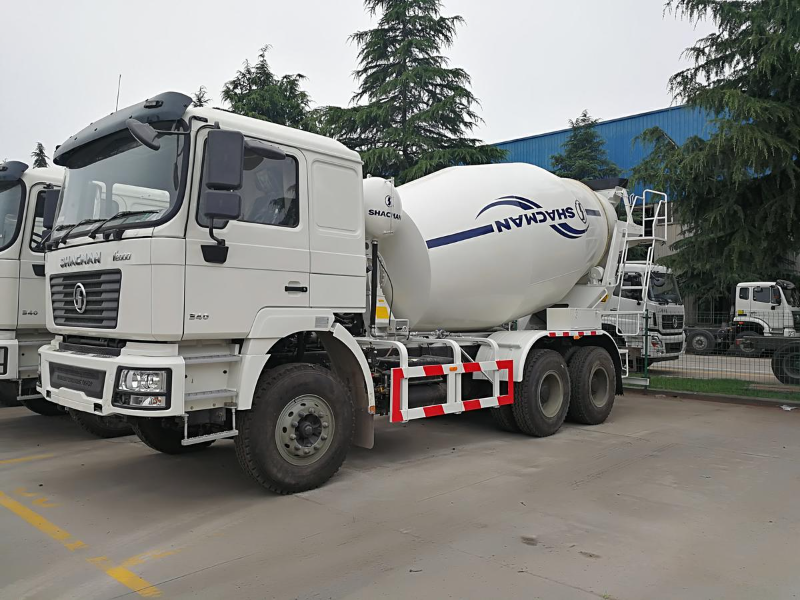

Shacman F3000 6x4 concrete mixer truck
$25000
Product Parameter
Brand Name
SHACMANMore parameters
SINOTRUK -HOWO ,FAWTruck Model ZZ1257N3841W / Geometric Volume 10 CBM 6,8,9,10,12,14,16,18 color option option Water Tank Volume(L) 400 Water Tank Volume(L) Engine WD615.47, Euro 2 Euro 3 ,Euro 4,Euro 5 Wheel base (mm) 3800+1350 customization Overall Dimension (mm) 8560x2496x3048 customization More Specifications:
Transmission HW19710, 10 forward and 2 reverse; Ratio: 4.42 4.8 5.73
Front Axle
New HF9 series, with drum brake system
Rear Axle
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering
ZF8118, hydraulic steering with power assistance; Ratio: 22.2-26.2:1
Wheels&Tyres
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab
HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
conditioner
Cargo body
American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color
consistent with the cab, front and rear lamp cover, other standard
Sinotruck HOWO 6X4 8m3 9m3 10m3 Cement Mixer Truck
$25000
Product Parameter
Brand Name
SINOTRUK -HOWOMore parameters
SHACMAN ,FAWTruck Model ZZ1257N3841W / Geometric Volume 10 CBM 6,8,9,10,12,14,16,18 color option option Water Tank Volume(L) 400 Water Tank Volume(L) Engine WD615.47, Euro 2 Euro 3 ,Euro 4,Euro 5 Wheel base (mm) 3800+1350 customization Overall Dimension (mm) 8560x2496x3048 customization More Specifications:
Transmission HW19710, 10 forward and 2 reverse; Ratio: 4.42 4.8 5.73
Front Axle
New HF9 series, with drum brake system
Rear Axle
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering
ZF8118, hydraulic steering with power assistance; Ratio: 22.2-26.2:1
Wheels&Tyres
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab
HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
conditioner
Cargo body
American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color
consistent with the cab, front and rear lamp cover, other standard
