Traction type: 6X4
Driving type: LHD(RHD is optioned)

Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock
Absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure,
Temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.

Engine:
Engine brand: Weichai
Engine model: WD615.34 EURII
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve
Brake.

Displacement: 9.726 liters
Max. Output: 340HP@250kW
Max torque: 1350NM@1400-1600rpm
Bore/Stroke(mm): 126/155

Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting

Gear box:
Model: Fuller 12 speeds(12JS160T), manual, 12-forward and 2 reverse speeds

Steering:
ZF8098

Brake system:
Double-circulate brake system

Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.263
Frame: Strengthened frame 317X70X8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare

Spring:13/13

Fuel tank capacity (L):400

Weight:
Kerb. Mass: 8800 kg
Towing mass: 25000kg

Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3500

Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradability(%): 30
Fifth Wheel: 50#(option: 90# )

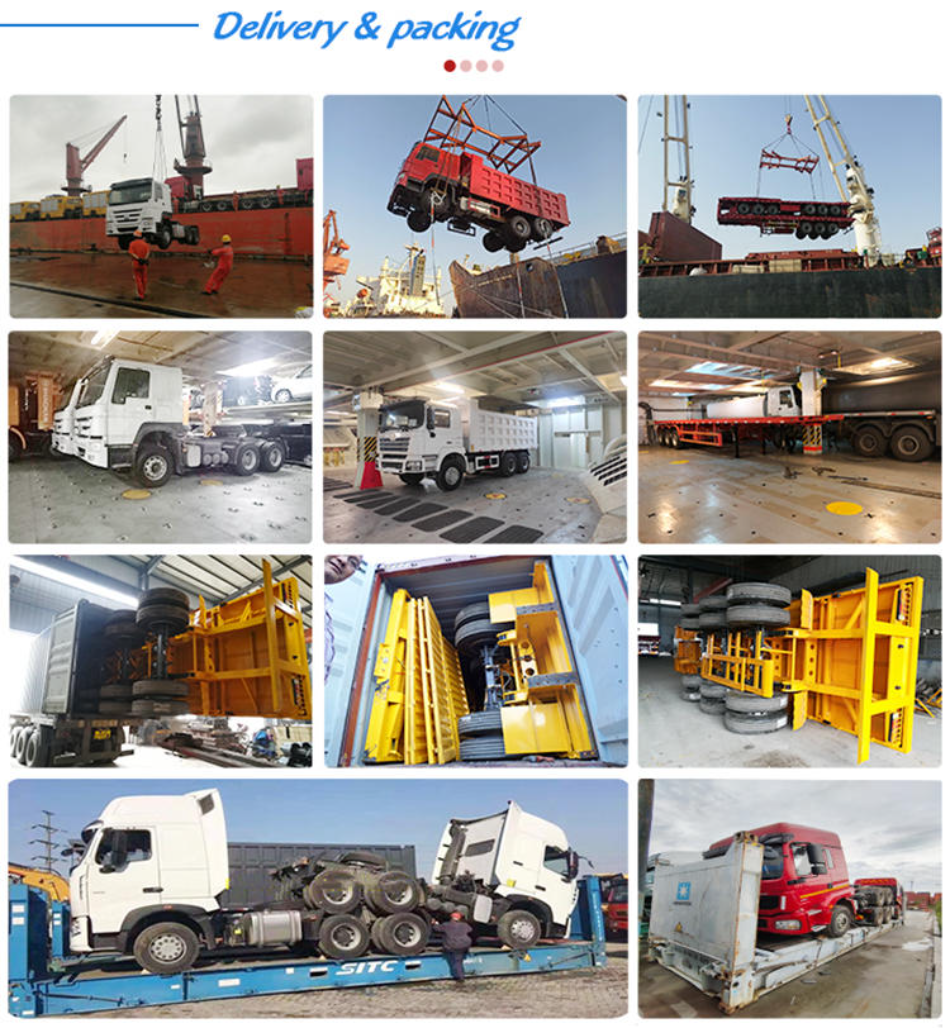

Shipping method

Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Flat rack container.

Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free.
