Chassis model

ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)

Engine

WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.

Cabin

HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.

Clutch

∮430 diaphragm spring clutch, hydraulic control air power assisted.

Transmission

HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m

Drive Axle

HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.

Front Axle

HF9, 9ton, drum brake

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO

Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer

Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel

Fuel tank: 300 L capacity, with locking fuel cap

Steering

ZF8118, hydraulic steering with power assistance, LHD

Brake system

Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.

Tyre

12.00R20 Radial plus one spare tyre (11 units)

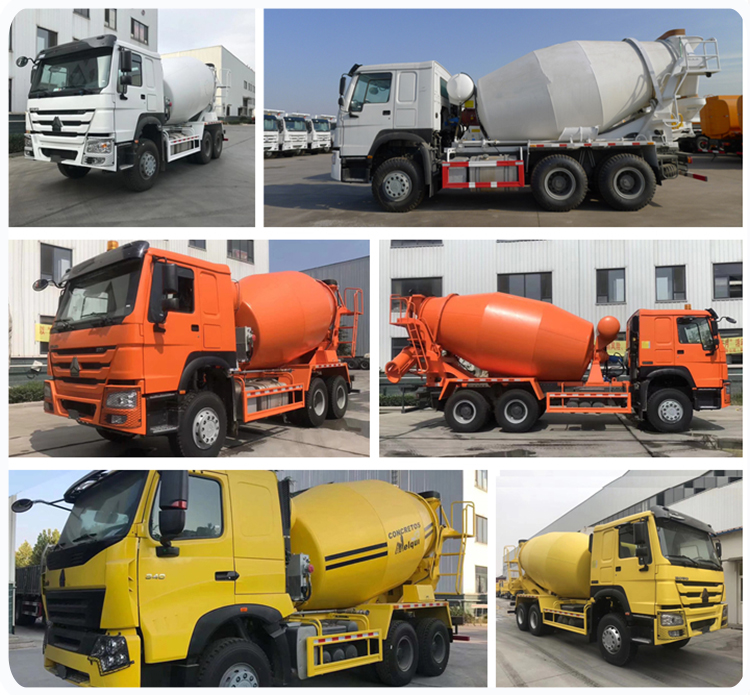

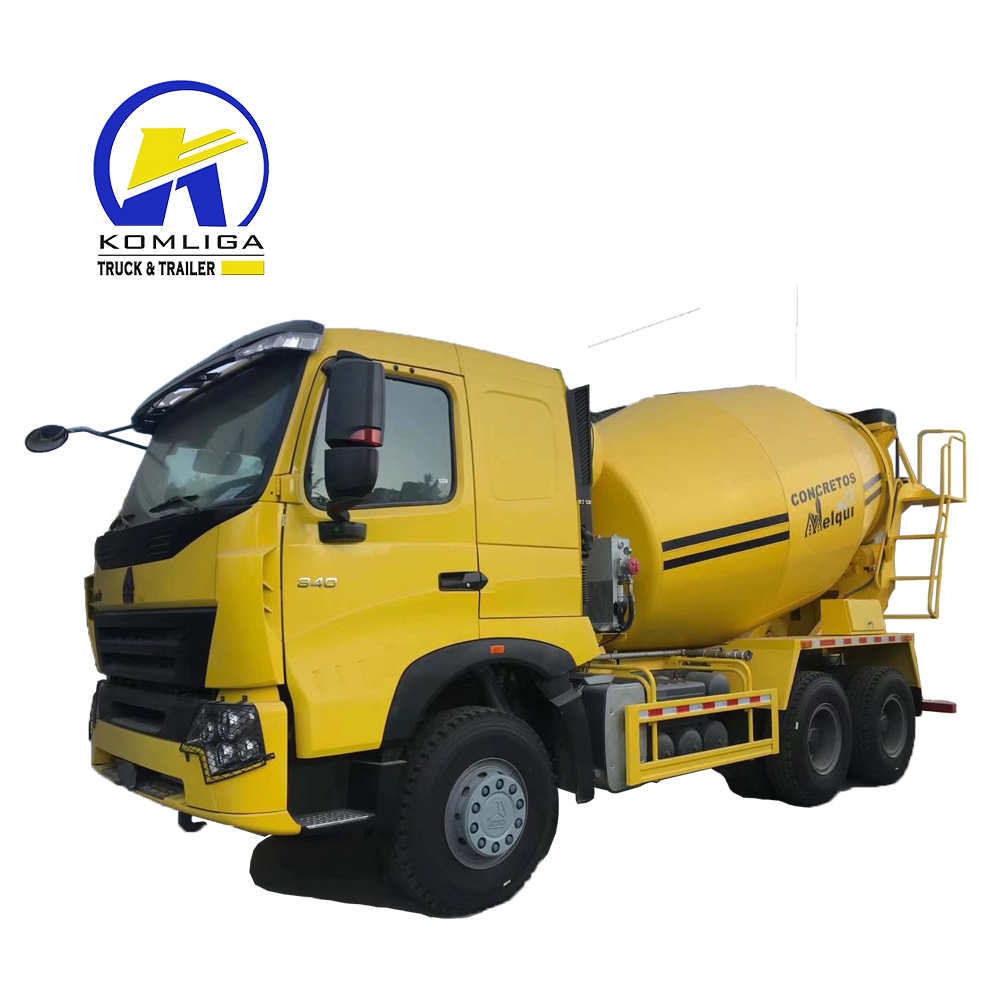

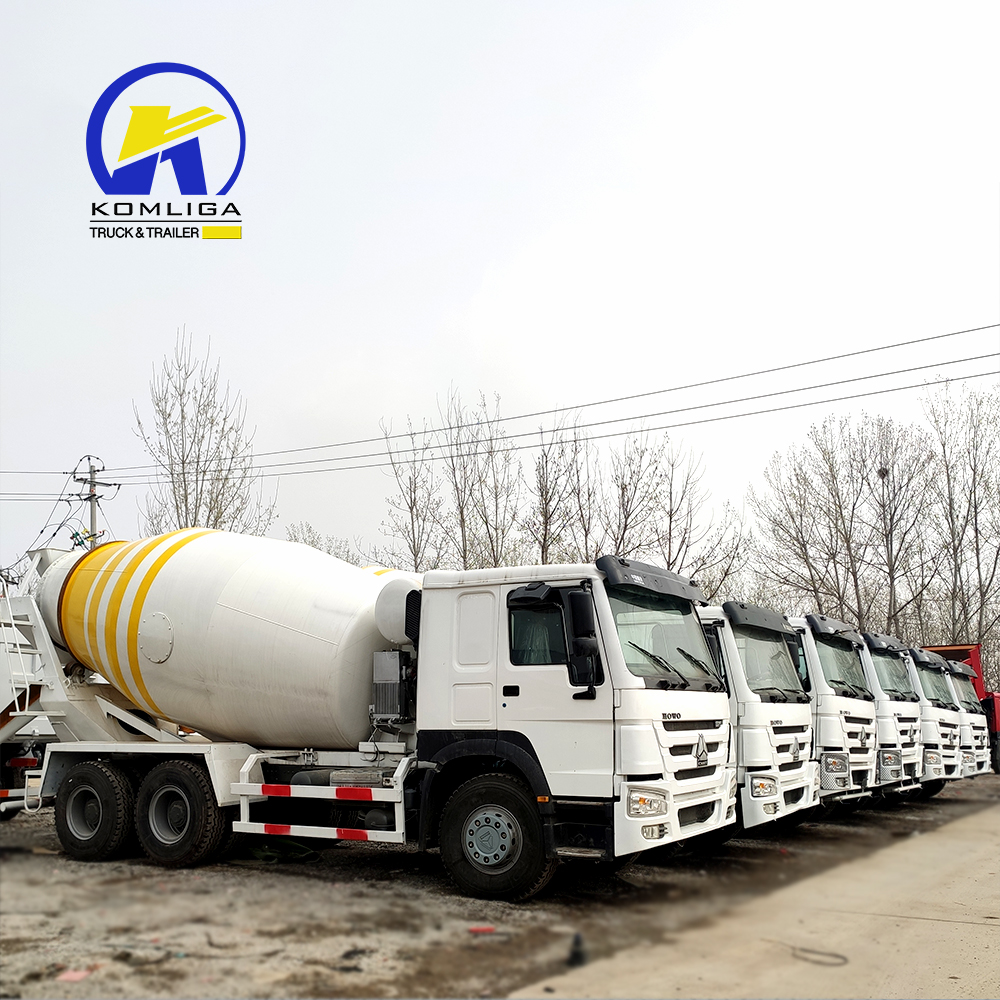

Mixing Tank

Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm

Other Specification

With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor
